Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Microchip Technology
Series SAM D20E
Package Tape & Reel
Product Status Active
Programmable Not Verified
Core Processor ARM® Cortex®-M0+
Core Size 32-Bit Single-Core
Speed 48MHz
Connectivity I2C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, WDT
Number of I/O 26
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
RAM Size 4K x 8
Voltage - Supply (Vcc/Vdd) 1.62V ~ 3.6V
Data Converters A/D 10x12b; D/A 1x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount

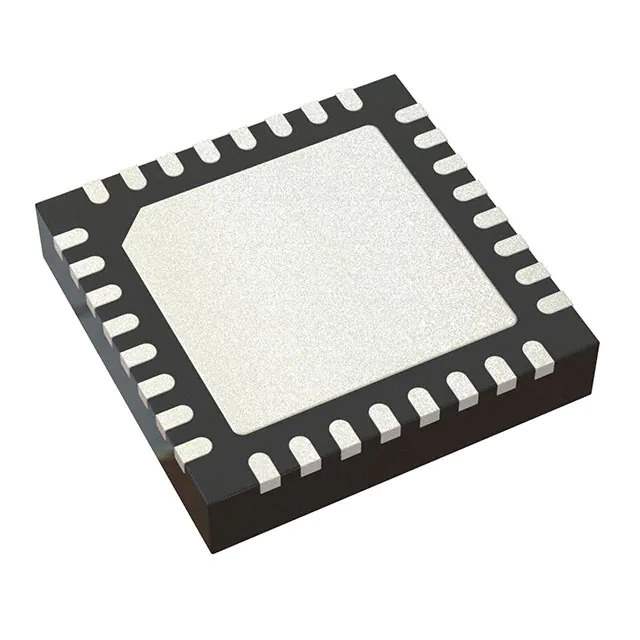

Package / Case 32-VFQFN Exposed Pad
Supplier Device Package 32-VQFN (5x5)
Base Product Number ATSAMD20
Standard Package 5,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 566890-ATSAMD20E15A-MUT
Ultra Librarian 3D Model Ultra Librarian ATSAMD20E15A-MUT CAD Model

Description

Microchip Technology ATSAMD20E15A-MUT

The Microchip Technology ATSAMD20E15A-MUT is a high-performance, low-power microcontroller that is part of the robust SAM D20 family of devices. This compact and efficient microcontroller is designed to cater to a wide range of applications, including industrial control systems, consumer electronics, and Internet of Things (IoT) devices.

Key Features:

  • Core: ARM Cortex-M0+ processor, running at up to 48MHz, offering the perfect balance between power consumption and processing capability.
  • Memory: Comes with 32KB of flash memory and 4KB of SRAM, providing ample space for application code and data storage.
  • I/O Flexibility: Features 26 programmable I/O pins, which can be configured for a variety of uses, such as digital interfaces, analog inputs, PWM outputs, and more.
  • Power Efficiency: Designed with power-saving techniques, including an Event System that allows peripherals to communicate directly without CPU intervention, and SleepWalking peripherals that can operate in sleep modes.
  • Peripheral Touch Controller: Integrated PTC provides a hardware solution for capacitive touch interfaces, enhancing user interaction experiences.
  • Communication Interfaces: Offers multiple communication interfaces, including I2C, SPI, and USART, enabling easy integration with a wide array of peripheral devices.
  • Package: Available in a 32-pin QFN package, which is ideal for space-constrained applications.
  • Temperature Range: Operates within an industrial temperature range of -40°C to +85°C, ensuring reliability across various environments.
  • Development Support: Supported by Microchip's Atmel Studio IDE and the Atmel Software Framework, which provide a comprehensive development ecosystem to streamline the development process.

The ATSAMD20E15A-MUT is an excellent choice for designers looking for a microcontroller that delivers a high level of performance without compromising on power efficiency. Its rich set of features and extensive development support make it a versatile and easy-to-use solution for a multitude of embedded systems applications.
