Products specifications

Category Crystals, Oscillators, Resonators - Pin Configurable/Selectable Oscillators
Mfr Microchip Technology
Series DSC60XX
Package Tube
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 20MHz, 25MHz
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height 0.035" (0.90mm)
Package / Case 4-VDFN
Standard Package 110
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1343683-DSC6023CI2A-00A4
Ultra Librarian 3D Model Ultra Librarian DSC6023CI2A-00A4 CAD Model

Description

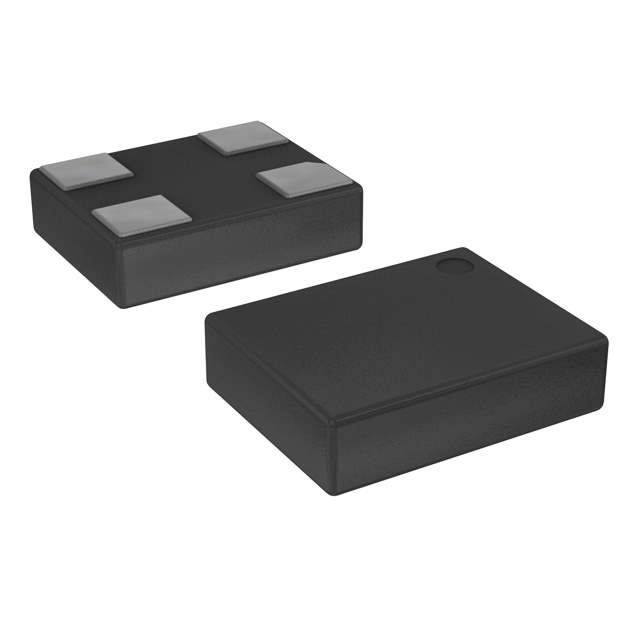

The DSC6023CI2A-00A4 from Microchip Technology is a cutting-edge MEMS oscillator designed to deliver exceptional timing precision and reliability for a wide range of applications. This compact, surface-mount device is part of Microchip's DSC6000 family, renowned for its low power consumption and high stability in a variety of environmental conditions.

Key Features

  • Frequency Range: The oscillator operates at a fixed frequency of 4 MHz, which is ideal for microcontroller clocking, Ethernet, USB, and other serial communication interfaces.
  • Supply Voltage: It is designed to function within a 1.71V to 3.63V voltage range, offering flexibility for different power supply configurations and ensuring compatibility with a variety of digital systems.
  • Stability: The device offers excellent frequency stability, rated at ±25 ppm over the industrial temperature range (-40°C to +85°C), ensuring precise timing under varying conditions.
  • Package: The DSC6023CI2A-00A4 comes in a compact 4-SMD, no lead package, making it suitable for space-constrained applications while providing robust performance.
  • Output Type: It features a CMOS output, which is compatible with most digital circuits, providing a square wave output that is necessary for clocking digital systems.

Applications

With its precision and small footprint, the DSC6023CI2A-00A4 is an excellent choice for a variety of applications, including:

  • Portable and battery-powered devices
  • Wearable technology
  • Internet of Things (IoT) devices
  • Industrial controls and automation
  • Consumer electronics
  • Telecommunications systems

The DSC6023CI2A-00A4 MEMS oscillator from Microchip Technology represents a blend of modern technology with practical design, offering designers and engineers a reliable and efficient timing solution for their electronic products.
