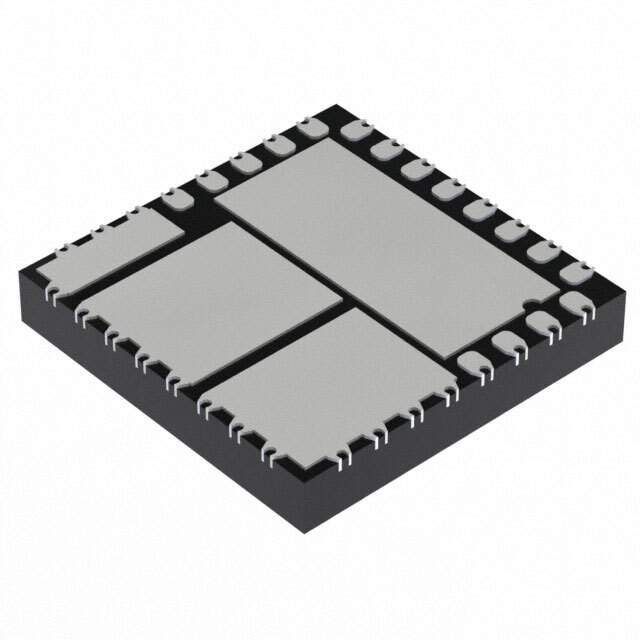

Microchip Technology's MIC28516T-E/PHA: High-Efficiency Synchronous Step-Down Regulator

The MIC28516T-E/PHA is a state-of-the-art synchronous step-down regulator module from Microchip Technology, designed to deliver high efficiency and reliability for a wide range of applications. This compact, integrated power solution is capable of delivering up to 4A of continuous output current and can handle input voltages ranging from 4.6V to 45V, making it a versatile choice for various industrial, automotive, and telecommunications systems.

Key Features

• Wide Input Voltage Range: The MIC28516T-E/PHA operates efficiently with an input voltage range of 4.6V to 45V, accommodating a variety of power sources and fluctuating input conditions.
• High Output Current: Capable of providing up to 4A of continuous output current, this regulator is suitable for powering demanding loads.
• Adjustable Output Voltage: Users can adjust the output voltage from 0.8V to 0.9 x VIN, allowing for precise voltage regulation tailored to specific application requirements.
• High Efficiency: The synchronous buck architecture ensures high efficiency, reducing power loss and heat generation, which is crucial for maintaining performance in thermally constrained environments.
• Thermal Management: The device includes thermal shutdown protection, safeguarding against overheating and ensuring long-term reliability.
• Protection Features: The MIC28516T-E/PHA is equipped with a suite of protection features including under-voltage lockout, over-current protection, and short-circuit protection, enhancing system safety and durability.

Applications

The MIC28516T-E/PHA is ideal for a broad array of applications, such as:

• Industrial Control Systems
• Automotive Power Systems
• Telecommunication Equipment
• Networking Devices
• Distributed Power Systems

Easy Integration

With its compact Power Good (PG) output and enable pin, the MIC28516T-E/PHA can easily be integrated into complex systems, providing designers with a flexible and reliable power management solution. Its robust package ensures that it can withstand challenging environmental conditions, while its high level of integration reduces the need for additional external components, simplifying the design and reducing the overall system footprint.

Whether you're designing for industrial automation, automotive electronics, or communication infrastructure, the MIC28516T-E/PHA from Microchip Technology is engineered to meet your high-performance power conversion needs with ease and efficiency.
