Products specifications

Category Crystals, Oscillators, Resonators - Pin Configurable/Selectable Oscillators
Mfr Microchip Technology
Series DSC60XX
Package Tube
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 74.1758MHz, 74.25MHz
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height 0.035" (0.90mm)
Package / Case 4-VDFN
Standard Package 110
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1343226-DSC6023CI2A-00A7
Ultra Librarian 3D Model Ultra Librarian DSC6023CI2A-00A7 CAD Model

Description

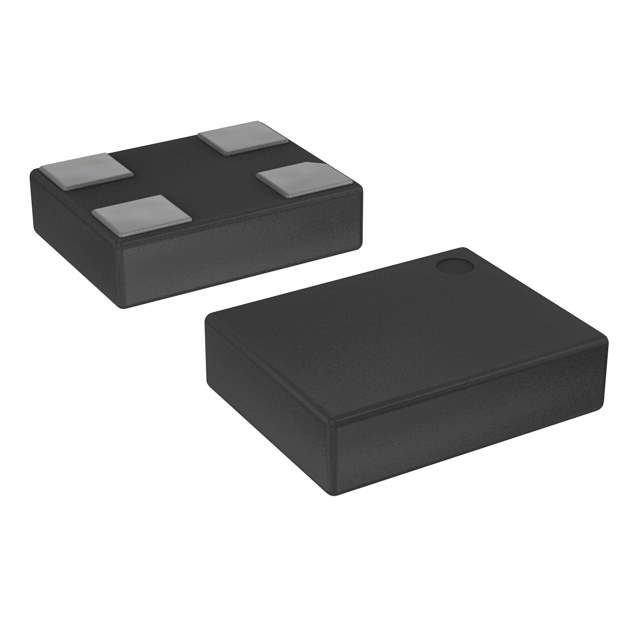

Microchip Technology DSC6023CI2A-00A7 MEMS Oscillator

The DSC6023CI2A-00A7 is a cutting-edge MEMS (Micro-Electro-Mechanical Systems) oscillator from Microchip Technology, designed to provide exceptional timing solutions for a wide range of electronic applications. This compact and energy-efficient component is an ideal choice for designers looking for a reliable and stable clock source that can withstand the rigors of industrial and commercial environments.

Key Features:

  • Frequency Range: The oscillator operates at a fixed frequency of 25 MHz, which is suitable for a variety of applications including microprocessors, networking, and communications equipment.
  • Supply Voltage: It functions within a supply voltage range of 1.71V to 3.63V, offering flexibility for different power supply designs and ensuring compatibility with a variety of logic levels.
  • Stability: The DSC6023CI2A-00A7 boasts an excellent frequency stability of ±25 ppm over the industrial temperature range of -40°C to +85°C, ensuring reliable performance under varying conditions.
  • Package: It comes in a compact 4-SMD, no lead package, with a size of 2.5 mm x 2.0 mm, making it easy to fit into space-constrained applications.
  • Output Type: The device provides a CMOS output, which is compatible with most digital circuits, allowing for straightforward integration into system designs.

Applications:

The DSC6023CI2A-00A7 is versatile and can be used in a myriad of applications, including but not limited to:

  • Consumer electronics such as wearables and smart home devices.
  • Industrial control systems where precision timing is critical.
  • Telecommunication infrastructure, including base stations and networking hardware.
  • IoT devices, where power efficiency and compact size are highly valued.

With its robust design, the DSC6023CI2A-00A7 ensures minimal power consumption, reduced board space requirements, and a decrease in the overall BOM (Bill of Materials) costs by eliminating the need for external load capacitors. This MEMS oscillator from Microchip Technology is an excellent choice for engineers looking to enhance the performance and reliability of their electronic systems.
