Products specifications

Category Crystals, Oscillators, Resonators - Pin Configurable/Selectable Oscillators
Mfr Microchip Technology
Series DSC60XX
Package Bag
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 74.1758MHz, 74.25MHz
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Size / Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height 0.035" (0.89mm)
Package / Case 4-VFLGA
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1343335-DSC6023HI2A-00A7
Ultra Librarian 3D Model Ultra Librarian DSC6023HI2A-00A7 CAD Model

Description

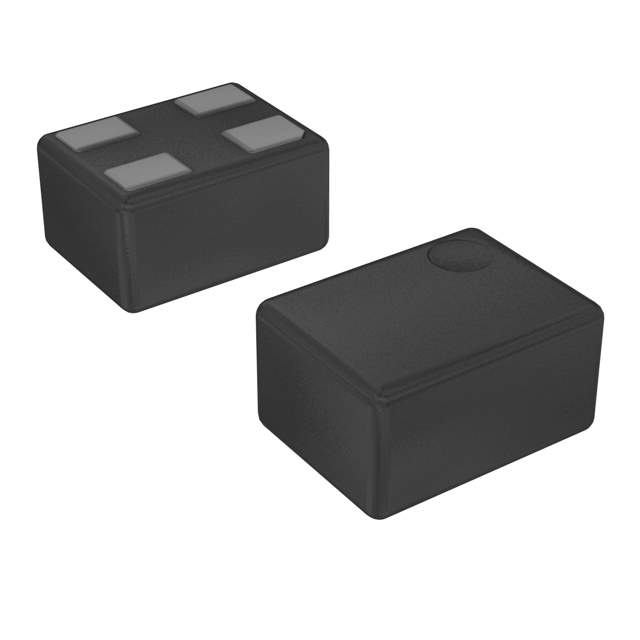

Microchip Technology's DSC6023HI2A-00A7: A Compact and Efficient MEMS Oscillator

The DSC6023HI2A-00A7 is a cutting-edge MEMS (Micro-Electro-Mechanical Systems) oscillator designed and manufactured by Microchip Technology. This highly stable and reliable timing solution is part of Microchip's comprehensive portfolio of frequency control products, tailored to meet the rigorous demands of modern electronic devices.

Key Features

  • Small Footprint: The DSC6023 series is housed in a compact 2.0 mm x 2.5 mm package, making it an ideal choice for space-constrained applications where board real estate is at a premium.
  • Frequency Range: The DSC6023HI2A-00A7 operates at a fixed frequency of 0.0 MHz, providing precise timing for a wide array of applications.
  • Low Power Consumption: Designed for energy-sensitive applications, this oscillator maintains excellent performance while minimizing power usage, thereby extending the battery life of portable devices.
  • Temperature Stability: It offers superior temperature stability, ensuring consistent performance across a broad temperature range, which is critical for industrial and automotive applications.
  • Supply Voltage: The device supports a supply voltage of 1.8V, aligning with the needs of low-voltage electronics.
  • Output Type: The oscillator provides a CMOS output, which is a common requirement for digital integrated circuits.

Applications

The DSC6023HI2A-00A7 is versatile and can be used in a multitude of applications. It is particularly well-suited for:

  • Portable and battery-powered devices
  • Wearable technology
  • Internet of Things (IoT) devices
  • Industrial control systems
  • Automotive electronics
  • Telecommunications infrastructure

Quality and Reliability

Microchip Technology is known for its commitment to quality, and the DSC6023HI2A-00A7 is no exception. This MEMS oscillator is designed to meet stringent industry standards, ensuring reliable operation even under harsh conditions. With its robust performance and compact size, the DSC6023HI2A-00A7 is an excellent choice for designers looking to optimize their system's performance while reducing overall footprint.

For more detailed specifications and application support, visit Microchip Technology's official website or contact their customer support team.
