Microchip Technology's DSC6021HI2A-009V MEMS Oscillator

The DSC6021HI2A-009V is a precision MEMS (Micro-Electro-Mechanical Systems) oscillator designed and manufactured by Microchip Technology, a leader in microcontroller, mixed-signal, analog, and Flash-IP solutions. This high-performance oscillator is part of the DSC6000 family, which is known for providing excellent stability and reliability in a variety of electronic applications.

The DSC6021HI2A-009V offers a frequency range of 2.3 kHz to 460 kHz, making it suitable for a wide array of applications that require a low-frequency timekeeping solution. It is characterized by its very low power consumption and compact footprint, housed in a 2.5 x 2.0 mm package. This makes it an ideal choice for portable and battery-powered devices where power efficiency and space constraints are critical considerations.

One of the key advantages of the DSC6021HI2A-009V MEMS oscillator is its robustness. It is engineered to perform reliably under harsh environmental conditions, including extreme temperatures, which is reflected in its operating temperature range of -40°C to +85°C. Additionally, it is less susceptible to mechanical shock and vibration compared to traditional quartz-based oscillators, thereby ensuring consistent performance and longevity in challenging physical environments.

The oscillator also boasts excellent frequency stability, with a typical frequency stability of ±25 ppm over the entire temperature range. This precision is vital for applications that require a stable clock signal, such as wireless communications, wearables, IoT devices, and industrial controls.

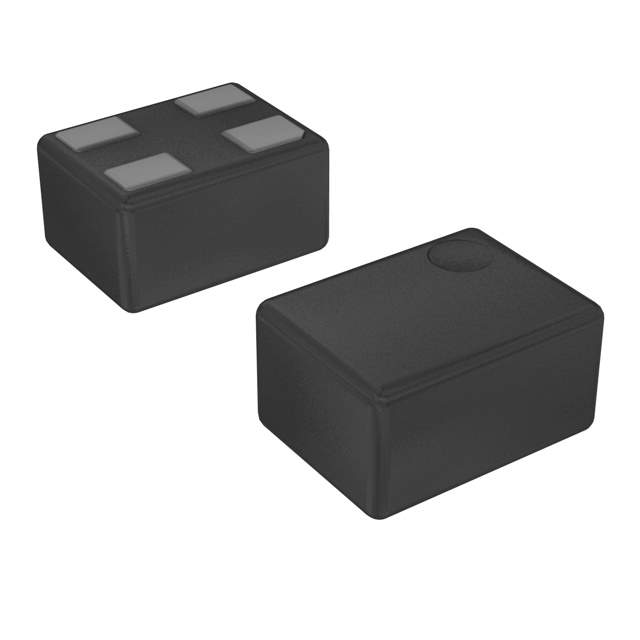

Furthermore, the DSC6021HI2A-009V is designed for ease of use, featuring a standard CMOS output and an industry-standard 4-pad plastic package. It is also compliant with the RoHS (Restriction of Hazardous Substances) directive, ensuring that it meets global environmental standards and is suitable for use in a wide range of markets.

In summary, Microchip Technology's DSC6021HI2A-009V is a versatile and reliable MEMS oscillator that offers low power consumption, high stability, and robust performance, making it an excellent choice for designers who require a compact, energy-efficient timing solution for their electronic projects.
