Products specifications

Categories Development Boards, Kits, Programmers
Manufacturer Microchip Technology
Part Status Obsolete(EOL)
Sensor Type Temperature
Sensing Range -64°C ~ 191°C
Interface SMBus (2-Wire/I²C)
Sensitivity ±1°C
Operating Supply Voltage 3 V ~ 3.6 V
Embedded No
Supplied Contents Board(s)
Utilized IC / Part EMC1043
Win Source Part Number 773776-EVB-EMC1043
Popularity Medium
Supply and Demand Status Balance
Family Name EVB-EMC1043
Introduction Date November 12, 2004
Ultra Librarian 3D Model Ultra Librarian EVB-EMC1043 CAD Model

Description

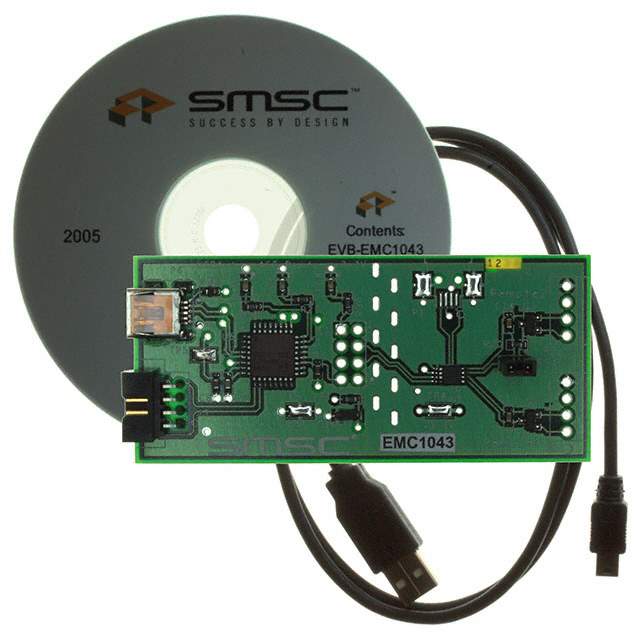

EVB-EMC1043 Evaluation Board by Microchip Technology

The EVB-EMC1043 is a robust evaluation platform designed by Microchip Technology, specifically tailored for testing and experimenting with the EMC1043, a high-performance, low-cost, System Management Bus (SMBus) temperature sensor. This versatile evaluation board is an essential tool for engineers and developers looking to integrate temperature sensing capabilities into their designs with precision and reliability.

The EMC1043 is a standout in Microchip's temperature sensor lineup, offering features such as resistance error correction, beta compensation, and automatic diode-type detection. These features ensure accurate temperature readings and compatibility with various diode-connected transistors. The sensor is capable of monitoring up to three temperature zones: one external and two internal, enabling comprehensive thermal management of system components.

Featuring a user-friendly interface, the EVB-EMC1043 allows for easy access to all the functions of the EMC1043 sensor. The evaluation board includes configuration jumpers and test points, which simplify the process of setting up experiments and measurements. Additionally, the board is designed with a USB interface that connects to a PC, facilitating the use of Microchip's proprietary software for data logging, graphing, and fine-tuning of sensor parameters.

The EVB-EMC1043 is an invaluable asset for developing applications that require precise thermal monitoring, such as computer motherboards, servers, and other embedded systems. Its compact design and comprehensive feature set make it an excellent choice for both prototyping and educational purposes, providing insights into thermal dynamics and sensor calibration.

In conclusion, the EVB-EMC1043 from Microchip Technology is a top-tier evaluation board that offers unparalleled ease of use and access to advanced temperature sensing technology. Whether it's for industrial, commercial, or educational applications, the EVB-EMC1043 is an essential component in the toolkit of any developer working with thermal management.
