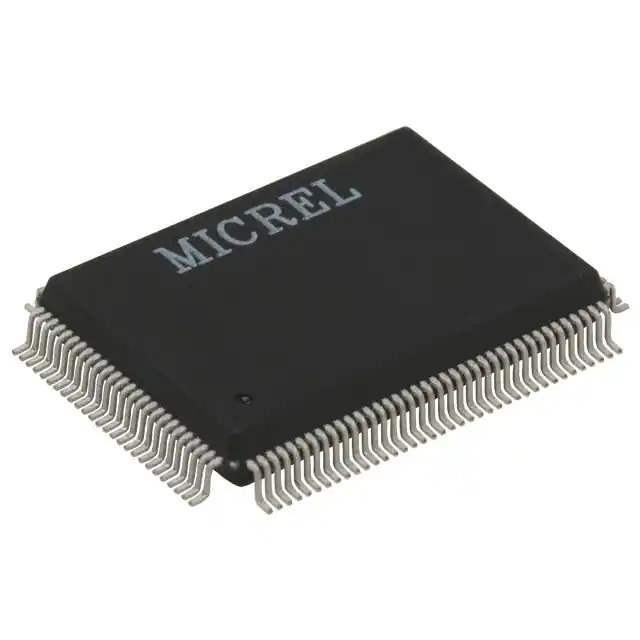

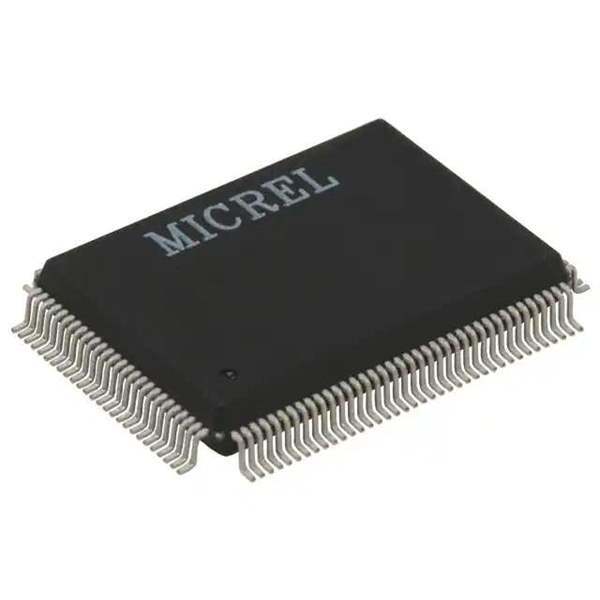

The KS8993, a remarkable offering from Microchip Technology, is an integrated 3-port switch with PHYs that provides an optimal solution for small and medium network environments. This product is designed to cater to the needs of home gateways, broadband routers, and other networked devices where performance, cost, and space are critical considerations.

Key Features

• Integrated Switching: The KS8993 incorporates a robust switch fabric with three 10/100BASE-T/TX transceivers, ensuring efficient data flow between ports.
• Low Power Consumption: Designed with energy efficiency in mind, this device operates on low power, making it suitable for energy-sensitive applications.
• Auto MDI/MDIX Crossover: The ports come with automatic MDI/MDIX crossover, eliminating the need for crossover cables and simplifying network setup and expansion.
• Advanced Switch Features: It supports features such as 802.1q VLAN, QoS priority queues, and link aggregation, which enhance network management and performance.

Applications

The KS8993 is versatile and can be deployed in various applications, including:

• Home networking devices
• SOHO gateways
• Industrial control systems
• Networked printers and multimedia devices

Technical Specifications

Some of the technical highlights of the KS8993 include:

• Data Rate: 10/100 Mbps
• Ports: 3 integrated Ethernet ports
• MAC Addresses: Supports a MAC address table with up to 1K entries
• Standards Compliance: IEEE 802.3, IEEE 802.3u, and IEEE 802.3x
• Operating Temperature: 0°C to 70°C

Product Documentation and Support

Microchip Technology provides comprehensive documentation for the KS8993, including datasheets, application notes, and user guides. Customers can also access technical support and software updates to ensure seamless integration and maintenance of the product within their networks.
