Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Controllers
Mfr Microchip Technology
Package Tray
Product Status Active
Programmable Not Verified
Protocol Ethernet
Function Controller
Interface I2C, SPI
Standards 10/100 Base-T/TX PHY
Voltage - Supply 1.8V ~ 3.3V
Temperature Range - Operating -40°C ~ 85°C

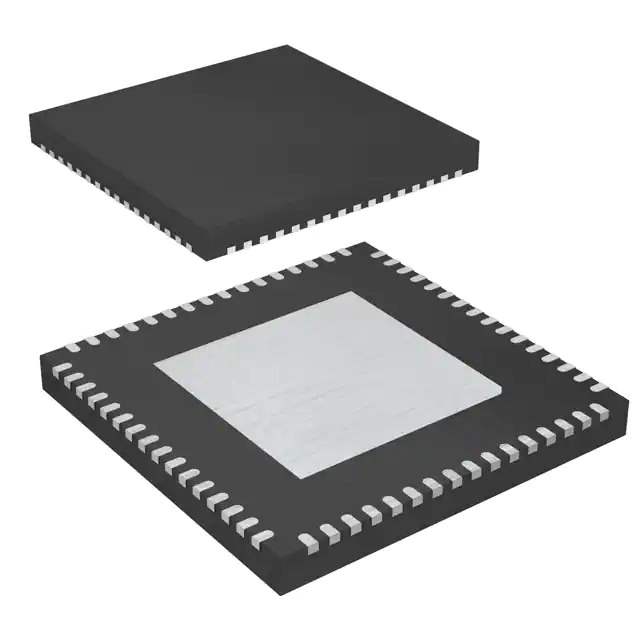

Package / Case 64-VFQFN Exposed Pad
Supplier Device Package 64-QFN (9x9)
Base Product Number LAN9250
Standard Package 260 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.39.0001
Win Source Part Number 876700-LAN9250I/ML
Ultra Librarian 3D Model Ultra Librarian LAN9250I/ML CAD Model

Description

Microchip Technology's LAN9250I/ML – High-Performance Ethernet Controller

The LAN9250I/ML is a feature-rich Ethernet controller designed by Microchip Technology to meet the rigorous demands of high-throughput industrial applications. This standalone device provides a single-chip solution for embedding Ethernet connectivity into your products, ensuring fast and reliable network communication.

At the core of the LAN9250I/ML is a high-performance 10/100 Ethernet transceiver that supports both full-duplex and half-duplex operation. This flexibility allows for seamless integration into various network configurations, making it an ideal choice for a wide range of applications, from factory automation to complex machinery control systems.

One of the standout features of the LAN9250I/ML is its support for a host of industry-standard interfaces, including a high-speed SPI interface. This offers designers the ability to connect the Ethernet controller to a variety of host processors without the need for a parallel bus, simplifying the design and reducing the overall system cost.

Additionally, the LAN9250I/ML is equipped with a robust set of features that enhance its performance and reliability in industrial environments. These include support for IEEE 1588 precision time protocol, which enables precise synchronization of clocks throughout a network, and Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption during periods of low data activity.

For developers concerned with system security and data integrity, the LAN9250I/ML comes with built-in hardware encryption and checksum offload engines. These features offload computationally intensive tasks from the host processor, freeing up resources for other critical functions and ensuring secure and efficient data transfer.

Furthermore, the LAN9250I/ML is designed with longevity in mind, featuring a robust industrial temperature range of -40°C to +85°C. Its durable construction and reliability make it a suitable choice for harsh industrial environments where consistent operation is paramount.

Microchip Technology's commitment to quality is evident in the LAN9250I/ML, making it an excellent choice for designers seeking a high-performance, reliable, and cost-effective Ethernet solution for their industrial applications.
