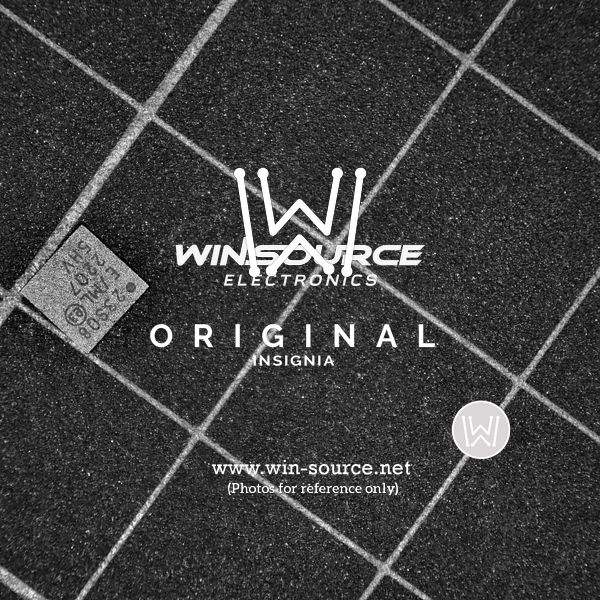

Microchip Technology MCP23S08T-E/ML

The MCP23S08T-E/ML is a versatile 8-bit I/O expander from Microchip Technology, designed to provide additional I/O capabilities to microcontroller-based systems via the Serial Peripheral Interface (SPI). This compact, surface-mount device comes in a 16-pin QFN (ML) package, making it suitable for space-constrained applications.

With the MCP23S08T-E/ML, users can benefit from an expanded I/O port that interfaces with the host controller through a high-speed SPI connection. This is particularly useful when the number of I/O pins on the microcontroller is insufficient for the needs of the application or when there is a necessity to control additional devices such as LEDs, switches, or sensors.

Key Features:

• Expandability: Provides eight additional general-purpose I/O pins that can be individually configured as input or output, allowing for a flexible integration into a variety of electronic projects.
• High-Speed SPI Interface: Offers fast data transfer rates, which is essential for applications requiring quick I/O expansions and real-time responsiveness.
• Configurable Polarity: Input polarity inversion feature allows users to adapt the I/O expander to their specific needs, ensuring compatibility with a wide range of input devices.
• Interrupt Output: Includes an interrupt output pin that can be activated when an input state changes, providing an efficient way for the host controller to detect input events without constant polling.
• Addressable: Up to eight devices can share the same SPI bus, thanks to three hardware address pins, making it possible to add up to 64 additional I/Os.
• Low Standby Current: Ideal for battery-operated applications due to its low power consumption when in standby mode.
• Extended Temperature Range: Operates across an industrial temperature range, making it suitable for use in harsh environments.

The MCP23S08T-E/ML is a reliable and cost-effective solution for system designers looking to increase the I/O capacity of their microcontroller-based systems without significant redesign. Its ease of use, combined with Microchip's reputation for quality, make it an excellent choice for both prototyping and production-scale applications.

Whether you're developing consumer electronics, industrial controls, or Internet of Things (IoT) devices, the MCP23S08T-E/ML provides the functionality and flexibility needed to create sophisticated, multi-featured products.
