The MCP3551-E/MS is a high-precision, single-channel, analog-to-digital converter (ADC) from the renowned semiconductor manufacturer, Microchip Technology. This ADC is based on the advanced Delta-Sigma modulation technique which ensures exceptional accuracy and noise reduction, making it an ideal choice for applications requiring precise measurement and data acquisition.
Key Features:
- Resolution: The MCP3551-E/MS boasts a 22-bit resolution, providing fine detail in the analog signal conversion process.
- Data Rate: It offers a low data output rate of 13.75 samples per second, which is optimal for applications that do not require high-speed conversions but prioritize accuracy.
- Interface: The device features a simple SPI serial interface for communication with microcontrollers and other digital systems, ensuring easy integration into a variety of designs.
- Low Power Consumption: Designed for efficient operation, it consumes a mere 275 µA during active conversion and has a sleep mode current of 1 µA, making it suitable for battery-powered and portable applications.
- Extended Temperature Range: The MCP3551-E/MS can operate over an industrial temperature range from -40°C to +125°C, ensuring reliability in harsh environments.

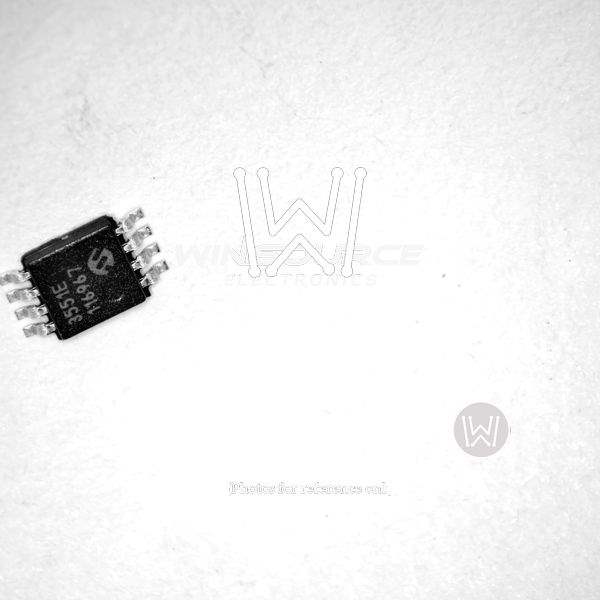

- Package: It is available in a compact 8-pin MSOP (Micro Small Outline Package) that is space-efficient and ideal for space-constrained applications.
Applications:
The precision and robustness of the MCP3551-E/MS make it an excellent choice for a wide range of applications, including:
- Industrial automation and process control
- Temperature sensing and environmental monitoring
- Medical and healthcare systems
- Weigh scales and battery/fuel cell monitoring
- Data acquisition systems
With its high resolution, low power consumption, and robust performance, the MCP3551-E/MS from Microchip Technology is a top-tier ADC solution for designers and engineers seeking to enhance the precision and efficiency of their electronic systems.
