Products specifications Report Issue?

Category Integrated Circuits (ICs)>Data Acquisition>Digital to Analog Converters (DAC)
Manufacturer Microchip Technology
Packaging Tube
Number of Bits 10
Number of D/A Converters 1
Settling Time 4.5µs (Typ)
Output Type Voltage - Buffered
Differential Output No
Data Interface SPI
Reference Type Internal
Voltage - Supply, Analog 2.7V ~ 5.5V
Voltage - Supply, Digital 2.7V ~ 5.5V
INL/DNL (LSB) ±1, ±0.2
Architecture String DAC
Temperature Range - Operating -40°C ~ 125°C

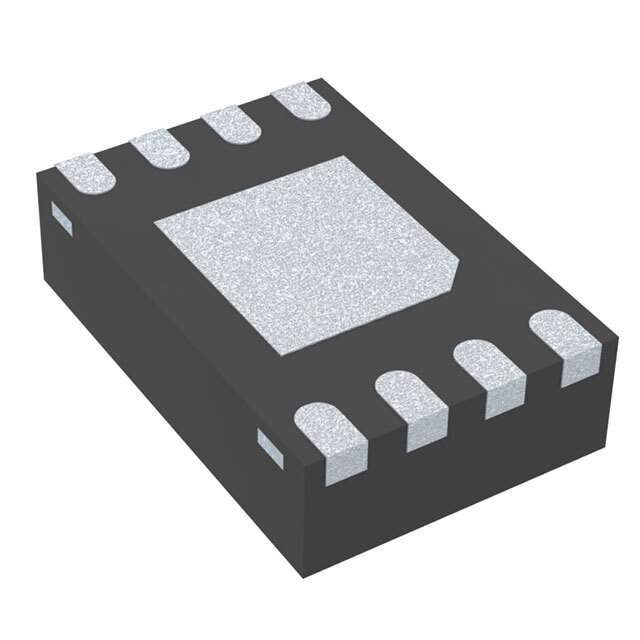

Case / Package 8-VFDFN Exposed Pad
Supplier Device Package 8-DFN (2x3)
Mounting Surface Mount
Base Product Number MCP4811
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number MCP4811EMC
Standard Package 150
Win Source Part Number 1323063-MCP4811-E/MC
Ultra Librarian 3D Model Ultra Librarian MCP4811-E/MC CAD Model

Description

Microchip Technology's MCP4811-E/MC Digital-to-Analog Converter

The MCP4811-E/MC from Microchip Technology is a highly integrated digital-to-analog converter (DAC) that offers a compact and efficient solution for converting digital signals into precise analog voltages. This 10-bit DAC is part of Microchip's MCP48xx series and is designed to deliver exceptional performance for a wide range of applications, including automated test equipment, consumer electronics, and industrial systems.

The MCP4811-E/MC operates with a single supply voltage ranging from 2.7V to 5.5V, which makes it suitable for both 3.3V and 5V systems. This flexibility in voltage supply ensures that the device can be easily integrated into various circuit designs without the need for complex power management.

Featuring a Serial Peripheral Interface (SPI), the device allows for easy communication with microcontrollers and other digital systems. This interface provides a simple and reliable method for sending digital data to the DAC, enabling precise control over the output analog voltage.

The MCP4811-E/MC comes in a small 8-pin MSOP (Micro Small Outline Package) that is both space-saving and ideal for designs where board space is at a premium. Its compact size, coupled with its high level of integration, reduces the need for additional components and simplifies the overall design process.

Key features of the MCP4811-E/MC include its onboard precision voltage reference, which ensures stable and accurate output voltages. The device also offers a fast settling time, which is crucial for applications that require quick response times. Additionally, the DAC supports a shutdown feature that reduces power consumption when the device is not in active use, making it an energy-efficient choice for battery-operated devices.

In summary, the MCP4811-E/MC is a versatile, high-performance DAC that provides a simple and effective solution for converting digital information into analog signals. Its ease of use, combined with its small footprint and power efficiency, makes it an excellent choice for designers looking to add analog output capabilities to their digital systems.
