DAC128S085CIMTX - Texas Instruments 12-Bit Micro Power OCTAL Digital-to-Analog Converter

The DAC128S085CIMTX is a precision 12-bit digital-to-analog converter (DAC) from Texas Instruments, offering eight channels of output in a compact, micro-power design. This integrated circuit is designed to meet the demanding performance requirements of advanced audio systems, industrial control processes, and sophisticated data acquisition systems.

Key Features:

• Resolution: 12-bit resolution ensures high-quality signal conversion, providing detailed and accurate analog outputs.
• Channels: Features eight independent DAC channels, allowing for multiple signal outputs from a single device, which is ideal for complex systems requiring multiple analog signals.
• Interface: The device supports a high-speed, SPI-compatible serial interface, enabling efficient communication with microcontrollers or digital signal processors.
• Supply Voltage: Operates on a wide supply voltage range from 2.7V to 5.5V, offering flexibility for various power supply configurations.
• Low Power Consumption: Designed for low power operation, which makes it suitable for battery-powered and portable applications, with a typical power consumption of only 1.4mW at 3V.
• Settling Time: Fast settling time of 5µs to within ±0.5 LSB ensures quick response for real-time applications.

Applications:

The DAC128S085CIMTX is a versatile component that can be used in a wide range of applications, including:

• Data acquisition systems
• Battery-operated devices
• Industrial automation
• Portable instruments
• Audio systems
• Process control

Package and Quality:

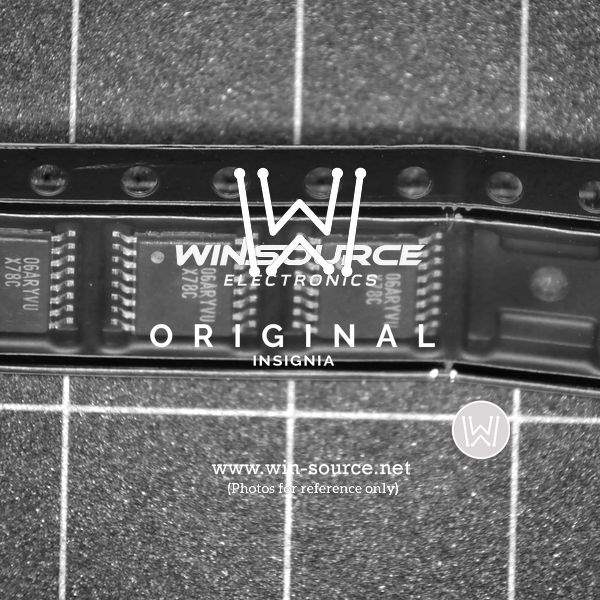

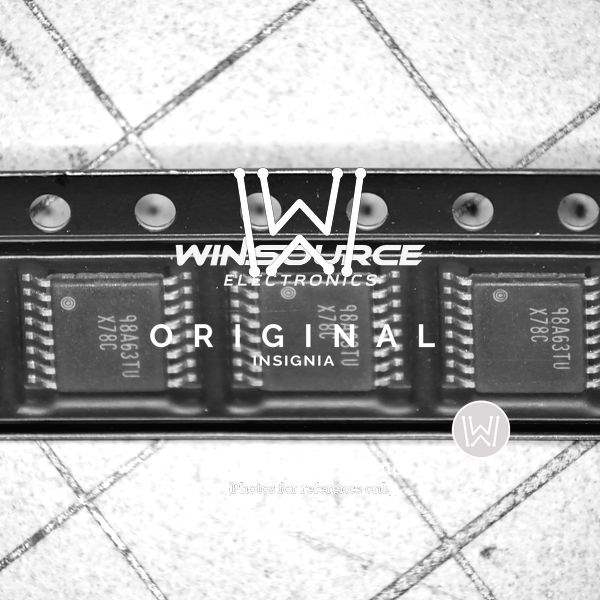

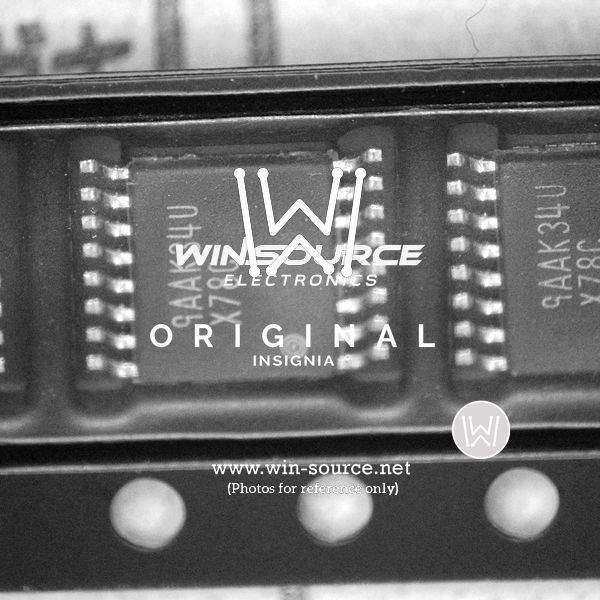

The DAC128S085CIMTX is available in a compact 16-lead WSON package, which occupies minimal board space. Texas Instruments is known for its commitment to quality, and this product is no exception. It is designed to meet the rigorous standards of industrial performance and reliability, ensuring long-term stability and consistent operation across varying environmental conditions.

With its combination of precision, power efficiency, and multi-channel capability, the DAC128S085CIMTX from Texas Instruments is an ideal choice for designers looking to implement robust and precise analog output functionality in their next project.
