Products specifications Report Issue?

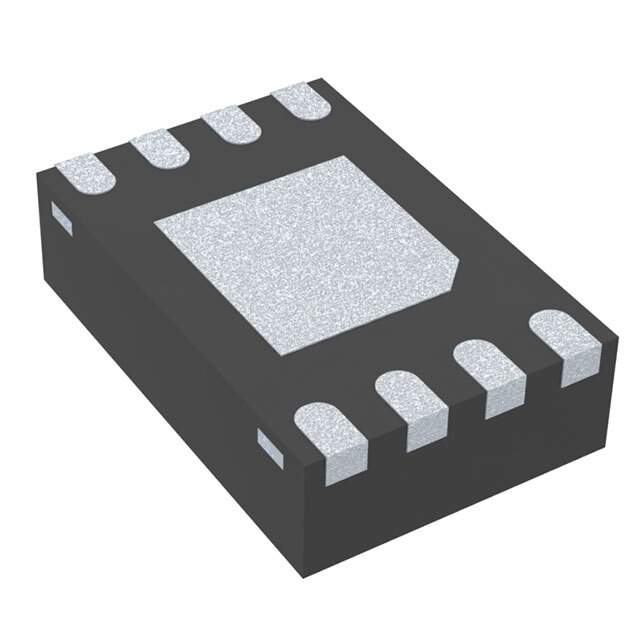

Win Source Part Number 2001334-MCP4821-E/MC
Win Source Part Number Cross
Manufacturer Microchip Technology
Category Integrated Circuits (ICs) Data Acquisition Digital to Analog Converters (DAC)
Package Tube
Product Status Active
Number of Bits 12
Output Type Voltage - Buffered
Voltage - Supply, Analog 2.7V ~ 5.5V
Voltage - Supply, Digital 2.7V ~ 5.5V
Operating Temperature -40°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian MCP4821-E/MC CAD Model

Description

The MCP4821-E/MC is a single-channel, 12-bit digital-to-analog converter (DAC) from Microchip Technology, designed to deliver precision and performance for a wide range of applications. This compact device operates with a supply voltage from 2.7V to 5.5V, making it suitable for both 3.3V and 5V systems, and is available in an 8-pin MSOP package.

Key Features

  • Resolution: The MCP4821 offers a 12-bit resolution, providing fine analog output control, which is ideal for applications requiring high accuracy.
  • Internal Voltage Reference: An integrated precision voltage reference of 2.048V minimizes the need for external components and simplifies the design process.
  • Output Amplifier: The on-board rail-to-rail output amplifier allows the DAC to drive the analog output to both supply rails, offering a wide dynamic range.
  • SPI Interface: The device features a Serial Peripheral Interface (SPI) that allows for high-speed data transfer and easy connection to microcontrollers or other digital systems.
  • Low Power Consumption: With its low-power design, the MCP4821 is an excellent choice for battery-operated devices and power-sensitive applications.
  • Extended Temperature Range: The device is specified for operation over an industrial temperature range of -40°C to +125°C, ensuring reliable performance under varying environmental conditions.

Applications

The MCP4821-E/MC is versatile and can be used in a variety of applications, including:

  • Portable instrumentation
  • Data acquisition systems
  • Analog control loops
  • Programmable voltage and current sources
  • Consumer electronics

Conclusion

The MCP4821-E/MC from Microchip Technology is a robust and reliable DAC solution that offers designers a balance of performance and ease of use. Its integrated features and wide operating range make it an excellent choice for engineers looking to implement precise analog control in their next project.
