Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Op Amps
Mfr Microchip Technology
Package Bulk
Channels per IC 1 - Single, 6 - Hex
Amplifier Type Programmable Gain
Output Type Single-Ended, Rail-to-Rail
Slew Rate 22V/µs
-3db Bandwidth 12 MHz
Current - Output / Channel 30 mA
Current - Supply (Main IC) 1 mA
Voltage - Supply, Single/Dual (±) 2.5V ~ 5.5V
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part MCP6S21, MCP6S26
Base Product Number MCP6S2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8471.41.0150
Other Names MCP6S2XEV-NDR
Standard Package 1
Win Source Part Number 990142-MCP6S2XEV
Ultra Librarian 3D Model Ultra Librarian MCP6S2XEV CAD Model

Description

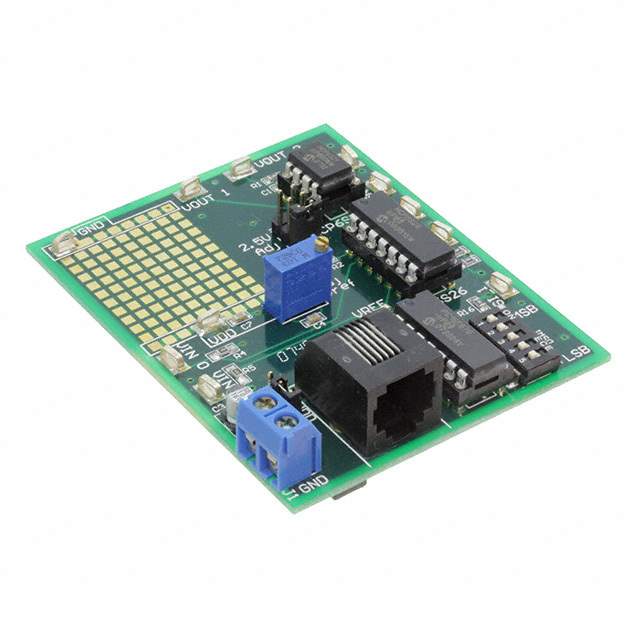

The MCP6S2XEV Evaluation Board from Microchip Technology is a powerful tool designed for developers and engineers to evaluate the functionality and performance of the MCP6S2X programmable gain amplifiers (PGAs). This evaluation board is an essential asset for those looking to incorporate Microchip's PGAs into their electronic designs, particularly in applications requiring precise signal amplification adjustments.

Key Features

  • Programmable Gain: The board features the MCP6S2X series of PGAs, which offer eight gain steps from 1 to 32, allowing users to optimize signal amplification for their specific needs.
  • Easy-to-Use Interface: The evaluation board includes a user-friendly interface for easy connection to Microchip's PIC microcontrollers, facilitating quick setup and integration.
  • Software Support: Microchip provides comprehensive software support, including example code and a graphical user interface (GUI), to help users rapidly develop and test their applications.
  • SPI Interface: The board utilizes a Serial Peripheral Interface (SPI) for communication, enabling fast data transfer rates and simple connection to a wide range of microcontroller units (MCUs).
  • Flexibility: The evaluation board is versatile and can be used in a variety of applications, including sensor signal conditioning, data acquisition systems, and industrial control systems.
  • Demonstration Ready: The MCP6S2XEV is designed to demonstrate the features of the MCP6S2X amplifiers immediately upon setup, significantly reducing development time.

Applications

The MCP6S2XEV Evaluation Board is ideal for applications in:

  • Automotive sensor interfaces
  • Portable instrumentation
  • Medical monitoring devices
  • Audio processing
  • Industrial control systems

Technical Specifications

Users of the MCP6S2XEV Evaluation Board can expect robust technical specifications that align with the high standards of Microchip Technology products. The board is designed to operate over a broad voltage range and temperature spectrum, ensuring reliable performance in diverse environments.

Whether you're a seasoned professional or just starting out, the MCP6S2XEV Evaluation Board from Microchip Technology offers the features and flexibility needed to streamline your development process and achieve optimal results in your electronic projects.
