Products specifications

Category Integrated Circuits (ICs) - Power Management (PMIC) - Power Distribution Switches, Load Drivers
Mfr Microchip Technology
Package Tape & Reel
Product Status Active
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type P-Channel
Interface On/Off
Voltage - Load 2.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 2A
Rds On (Typ) 70mOhm
Input Type Non-Inverting
Features Load Discharge, Slew Rate Controlled
Fault Protection Current Limiting (Adjustable), Over Temperature
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package 6-DFN (2x2)
Package / Case 6-VDFN Exposed Pad, 6-MLF®
Base Product Number MIC2017
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 739953-MIC2017YML-TR
Ultra Librarian 3D Model Ultra Librarian MIC2017YML-TR CAD Model

Description

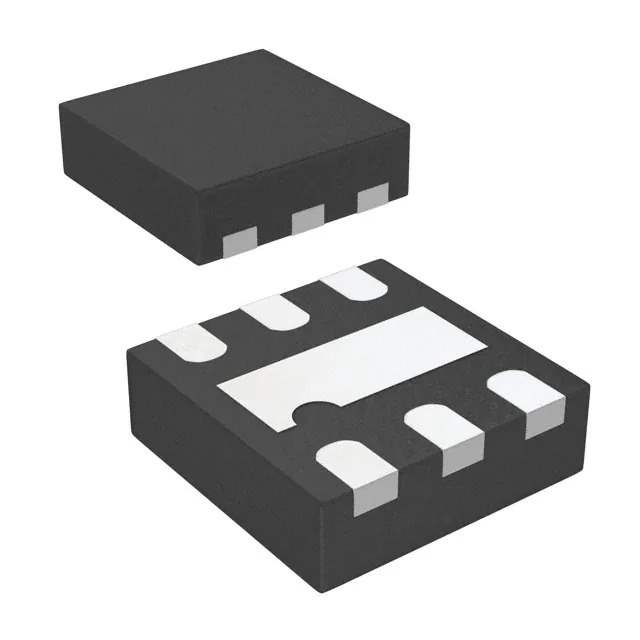

Microchip Technology MIC2017YML-TR Power Distribution Switch

The MIC2017YML-TR from Microchip Technology is a versatile and efficient power distribution switch designed for USB and other hot-swap applications. This component is an essential building block in modern electronics where controlled power distribution is required to prevent damage from overcurrent conditions. The MIC2017YML-TR is part of Microchip’s family of power management integrated circuits that are well-suited for a wide range of applications, from consumer electronics to industrial systems.

Key Features

  • Integrated Current Limiting: The MIC2017YML-TR is designed with built-in current limiting to protect the host device and downstream components from excessive current draw that can lead to overheating and potential failure.
  • Thermal Shutdown: With an automatic thermal shutdown feature, the device further enhances protection by turning off the output when the internal temperature exceeds safe operating limits.
  • Under-Voltage Lockout (UVLO): This feature ensures that the switch remains off when the input voltage falls below a minimum threshold, preventing erratic operation or damage to connected devices.
  • Fast Short-Circuit Response: The MIC2017YML-TR reacts quickly to short-circuit conditions, typically responding within 3 microseconds to minimize the impact of fault conditions.
  • Controlled Rise Time: The switch offers a controlled output rise time, which reduces inrush current and the potential for voltage droop on the power bus.
  • Active High Enable: The device includes an active high enable input that allows simple on/off control of the power switch.
  • Small Package: The MIC2017YML-TR comes in a compact MLF-6 package, making it suitable for space-constrained applications.

Applications

The MIC2017YML-TR is ideal for a variety of applications that require reliable power distribution and protection. It is commonly used in:

  • USB Hubs, Peripherals, and Portable Devices
  • Hot-Swap Power Supplies
  • Overcurrent and Thermal Protection Circuits
  • Notebook Computers and Docking Stations
  • Industrial Controls and Embedded Systems

With its combination of features, the MIC2017YML-TR from Microchip Technology provides designers with a robust solution for managing power distribution while safeguarding sensitive electronic components from potential hazards.
