ADP197ACPZN-01-R7

Part No ADP197ACPZN-01-R7
Manufacturer Analog Devices Inc.
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH N-CHAN 1:1 6LFCSP / Power Switch/Driver 1:1 N-Channel 3A 6-LFCSP-UD (2x2)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Power Distribution Switches, Load Drivers
Mfr Analog Devices Inc.
Package Tape & Reel
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 1.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 3A
Rds On (Typ) 27mOhm
Input Type Non-Inverting
Features Slew Rate Controlled
Fault Protection Over Temperature
Temperature Range - Operating -40°C ~ 105°C (TJ)
Mounting Type Surface Mount

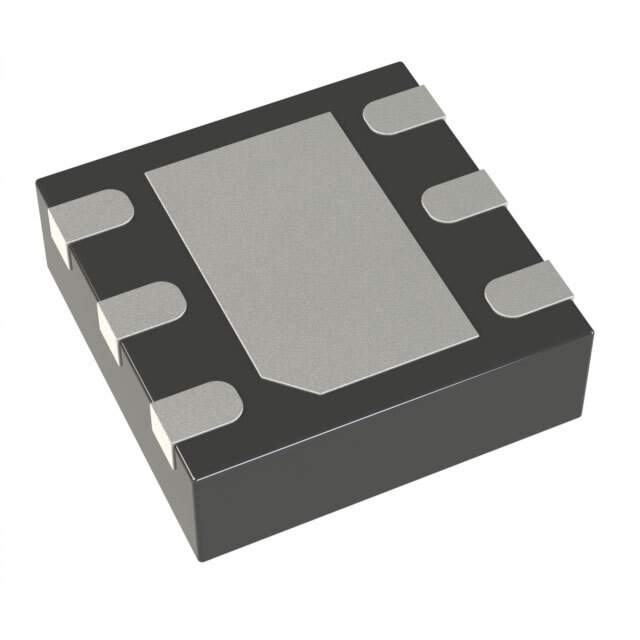

Supplier Device Package 6-LFCSP-UD (2x2)
Package / Case 6-UDFN Exposed Pad, CSP
Base Product Number ADP197
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1346944-ADP197ACPZN-01-R7
Ultra Librarian 3D Model Ultra Librarian ADP197ACPZN-01-R7 CAD Model

Description

Analog Devices Inc. ADP197ACPZN-01-R7 Overview

The ADP197ACPZN-01-R7 from Analog Devices Inc. is a high-performance, CMOS, single-channel load switch designed to operate from 1.1 V to 3.6 V, making it ideal for battery-operated devices. This load switch provides a compact and efficient solution for power distribution and management in various electronic systems.

Key Features

  • Low On-Resistance: The ADP197 features a low on-resistance (typically 92 mΩ at 1.8 V), which helps in reducing power loss and improving efficiency in power distribution.
  • Input Voltage Range: With an operating range of 1.1 V to 3.6 V, it supports a wide variety of low voltage applications, including those powered by single-cell lithium-ion batteries.
  • High Current Capability: It is capable of handling up to 1.1 A of continuous current, providing sufficient power for most portable and wearable devices.
  • Low Quiescent Current: The ADP197 has an exceptionally low quiescent current of less than 1 µA (typical), which is crucial for extending battery life in portable applications.
  • Control Features: The load switch can be controlled via a logic-compatible enable input, allowing for simple integration into digital control systems.

Applications

The ADP197ACPZN-01-R7 is suitable for a range of applications including but not limited to:

  • Smartphones and Tablets
  • Portable and Wearable Electronics
  • Wireless and Bluetooth Devices
  • Power Management Modules
  • Medical Devices

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the ADP197ACPZN-01-R7 is no exception. It is packaged in a compact 6-lead LFCSP (1.6 mm x 1.6 mm) package, which is both space-saving and offers reliable performance under various conditions. The product is also RoHS compliant and lead-free, ensuring adherence to environmental standards and regulations.

Conclusion

The ADP197ACPZN-01-R7 load switch from Analog Devices Inc. is an ideal choice for designers looking for a high-efficiency, easy-to-use power management solution. With its low on-resistance, broad input voltage range, and minimal quiescent current, it is perfectly suited for extending battery life and improving performance in a wide array of electronic devices.
