Microchip Technology's MIC2285AYMT-TR Step-Down Converter

The MIC2285AYMT-TR from Microchip Technology is a highly efficient, 1.2MHz pulse-width modulated (PWM), synchronous buck (step-down) regulator. This compact and powerful integrated circuit (IC) is designed to provide a regulated output voltage from an unregulated input source, making it an ideal solution for portable devices where space and power efficiency are critical.

Operating from an input range of 2.5V to 10V, the MIC2285AYMT-TR is capable of delivering up to 600mA of continuous output current to loads. It boasts a high efficiency of up to 96%, which not only conserves power but also minimizes the heat generated during operation. This makes it suitable for battery-powered applications where thermal management and battery life are of paramount importance.

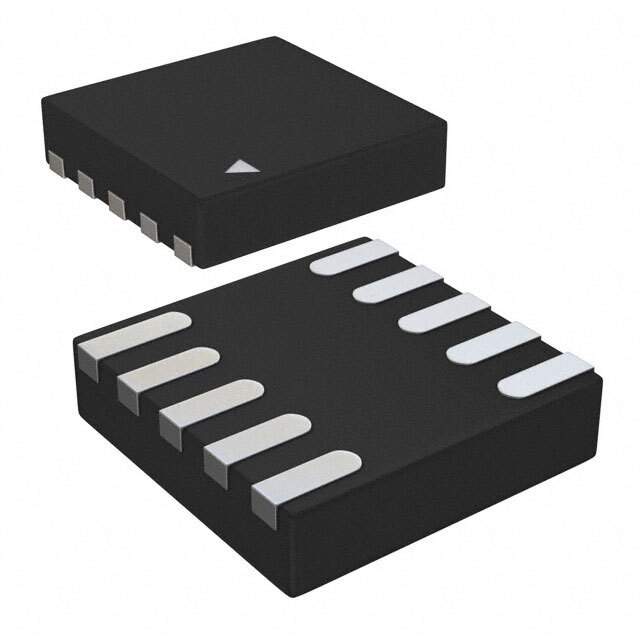

The device comes in a compact 10-pin 3mm x 3mm Thin MLF® package, which is perfect for space-constrained applications. Its small footprint allows for a minimalistic PCB layout and simplifies the design process for engineers. The MIC2285AYMT-TR also features a low quiescent current and a 100% duty cycle low dropout mode, which provides longer battery life by maintaining regulation during low battery conditions.

Additional features of the MIC2285AYMT-TR include internal compensation, which reduces the number of external components required, and a built-in soft start function that minimizes inrush current at startup, providing a smooth power-up sequence for sensitive loads. The device also offers over-temperature and current-limit protections, enhancing the reliability and safety of the end application.

With its high-frequency operation, the MIC2285AYMT-TR allows for the use of small surface-mount inductors and capacitors, reducing the overall solution size. This step-down converter is an excellent choice for designers looking to implement a robust power management solution in applications such as portable media players, smartphones, GPS devices, and other handheld electronics.
