The MIC29302WU-TR is a high-performance, adjustable and fixed voltage regulator designed and manufactured by Microchip Technology. This robust device is capable of delivering up to 3A of output current with a dropout voltage of typically 0.5V at full load. It is an ideal choice for high-efficiency power regulation in a wide range of electronic applications.

Key Features

• Output Current: Capable of delivering up to 3A of continuous output current, making it suitable for high-power applications.
• Low Dropout Voltage: Typically only 0.5V at full load, which allows for efficient operation even when the input voltage is close to the output voltage.
• Adjustable Output: The output voltage can be adjusted from 1.24V to 26V with the use of external resistors, providing flexibility for various design requirements.
• Fixed Voltage Options: Available in fixed output voltages for applications requiring standard voltage levels.
• Thermal Overload Protection: Integrated thermal overload protection safeguards the device and the system from damage due to excessive heat.
• Short Circuit Protection: The regulator includes short circuit protection, enhancing the reliability and longevity of both the regulator and the system it is part of.

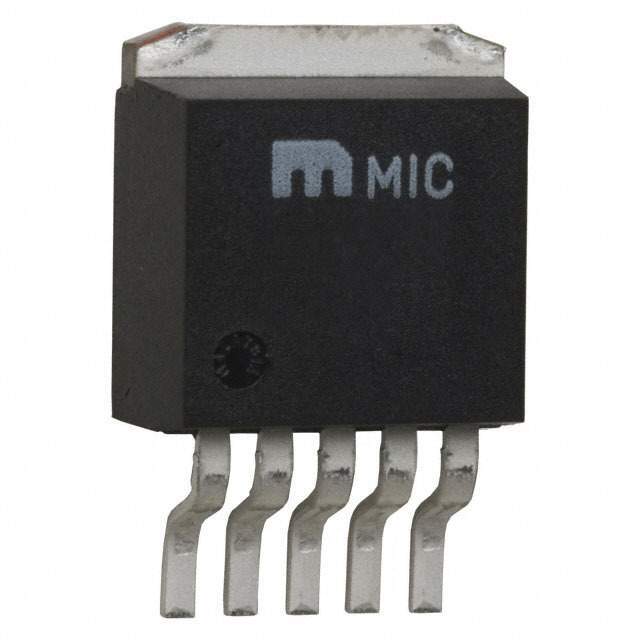

• Package: The MIC29302WU-TR is available in a TO-263 package, which is suitable for surface mount technology and helps in efficient heat dissipation.

Applications

The MIC29302WU-TR voltage regulator is versatile and can be used in various applications, including but not limited to:

• High-efficiency linear power supplies
• Battery chargers
• Power supplies for peripheral devices
• Post-regulation for switching supplies

Conclusion

With its combination of high current capability, low dropout voltage, adjustable output, and comprehensive protection features, the MIC29302WU-TR from Microchip Technology is a reliable and efficient solution for demanding power regulation needs in a multitude of electronic systems.
