Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 26V
Nominal Output Voltage (Min/Fixed) 1.24V
Maximum Output Voltage 26V
Dropout Voltage-Max 0.6V @ 1.25A
Output Current 1.25A
Operating Supply Current 500μA to 70mA
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 1.24 V to 26 V
Voltage - Dropout (Typical) 0.4V @ 1.25A
Mounting SMD (SMT)
Case / Package TO-263-5
Win Source Part Number 127069-MIC2941ABU
Ultra Librarian 3D Model Ultra Librarian MIC2941ABU CAD Model

Description

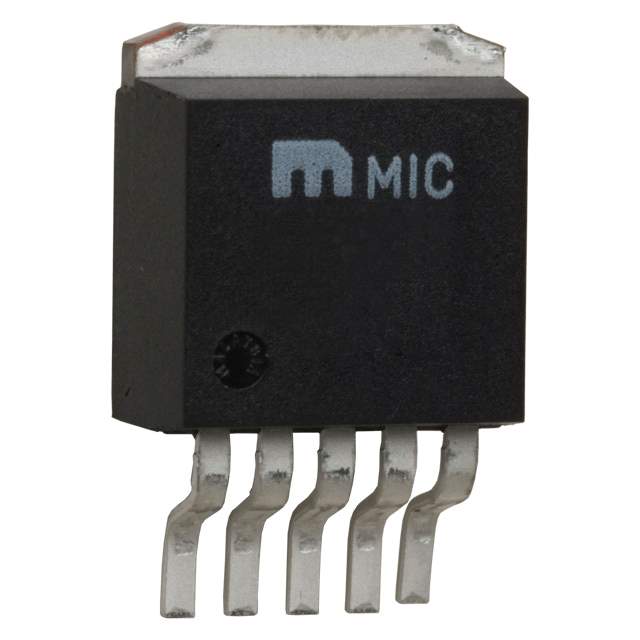

Microchip Technology's MIC2941ABU LDO Voltage Regulator

The MIC2941ABU is a robust low-dropout voltage regulator (LDO) designed by Microchip Technology, a leader in smart, connected, and secure embedded control solutions. This LDO is part of the MIC2941A series, known for its high current output and excellent regulation properties, making it an ideal choice for demanding applications.

Key Features

  • High Current Output: The MIC2941ABU is capable of delivering up to 1.25A of continuous current, which is suitable for powering a wide range of devices that require a stable voltage supply.
  • Adjustable Output Voltage: This regulator offers an adjustable output from 1.24V to 26V, providing flexibility for various design requirements. It allows designers to customize the voltage level according to the needs of the specific application.
  • Low Dropout Voltage: The device features a low dropout voltage, typically 40mV at light loads and 400mV at full load. This ensures efficient operation even when the input voltage is close to the output voltage, making it ideal for battery-powered devices.
  • Thermal Overload Protection: To ensure the longevity of the device, the MIC2941ABU includes built-in thermal overload protection that shuts down the regulator to prevent damage from overheating.
  • Current Limiting: In-built current limiting protects the device and the load from damage due to excessive current draw, enhancing system reliability.

Applications

The MIC2941ABU is well-suited for a variety of applications, including:

  • High-efficiency linear power supplies
  • Battery-powered equipment
  • Peripheral power supplies
  • Post-regulation for switching supplies

Package and Availability

The MIC2941ABU is offered in a TO-220 package, which is known for its ability to handle high power levels and its ease of mounting on printed circuit boards. This package, combined with the LDO's robust features, makes it an excellent choice for both commercial and industrial applications. The product is available through Microchip Technology's extensive distribution network, ensuring availability for a wide range of projects.

For designers and engineers seeking a reliable and versatile voltage regulator, the MIC2941ABU from Microchip Technology stands out as a top choice, offering high performance in a range of demanding applications.
