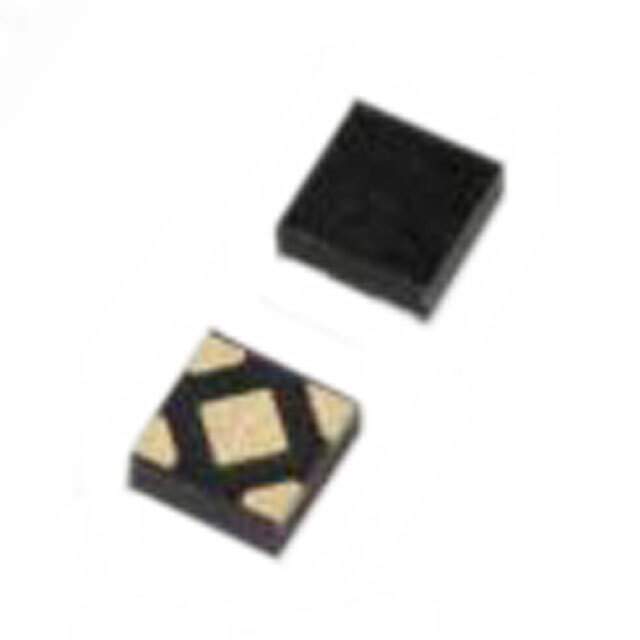

The XC6223B3319R-G is a low dropout (LDO) regulator manufactured by Torex Semiconductor Ltd. LDO regulators are used to provide a stable and regulated output voltage from a higher input voltage, while maintaining a low voltage drop between the input and output. The XC6223 series is known for its low noise, high ripple rejection, and small size, making it suitable for various portable and battery-powered applications.

Applications

• Mobile Phones: Provides regulated power to sensitive components in mobile phones.
• Smartphones: Used for powering microprocessors, memory, and other critical circuits.
• Tablets: Regulates power in tablets, ensuring stable performance and long battery life.
• Wearable Devices: Powers wearable devices such as smartwatches and fitness trackers.
• Portable Audio Players: Provides clean and stable power to audio circuits, minimizing noise.

Features

• Low Dropout Voltage: Maintains regulation even when the input voltage is close to the output voltage.
• Low Noise: Generates minimal noise, ensuring clean power for sensitive circuits.
• High Ripple Rejection: Effectively rejects ripple from the input voltage, providing a stable output.
• Overcurrent Protection (OCP): Protects the regulator from damage due to overcurrent conditions.
• Short-Circuit Protection (SCP): Shuts down the regulator in the event of a short circuit.
• Thermal Shutdown Protection (TSD): Protects the regulator from overheating.

Benefits

• Stable Output Voltage: Provides a stable and regulated output voltage, ensuring consistent performance.
• Long Battery Life: Minimizes power consumption, extending battery life in portable devices.
• Improved Audio Quality: Reduces noise in audio circuits, improving sound quality.
• Enhanced Reliability: Protects the regulator and connected components from damage.
• Simplified Design: Reduces the complexity of power management circuits.

Additional Details

The XC6223B3319R-G provides a 3.3V output voltage, indicated by the 'B33' in the part number. The '19R-G' typically refers to the specific package type and tape & reel packaging. LDO regulators are designed to provide a stable output voltage even when the input voltage fluctuates or the load current changes. The low dropout voltage is a key characteristic, allowing the regulator to operate efficiently even when the input voltage is only slightly higher than the output voltage. The low noise and high ripple rejection features are essential for powering sensitive analog and digital circuits. The overcurrent, short-circuit, and thermal shutdown protection features enhance the reliability of the regulator and the overall system. The XC6223B3319R-G is commonly used in applications where a stable and efficient power supply is required in a small form factor.
