Products specifications

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube
Status Obsolete
Output Type Adjustable
Voltage - Input (Maximum) 26V
Min/Fixed Output Voltage 1.25V
Maximum Output Voltage 25V
Maximum Dropout Voltage 0.6V at 5A
Output Current 5A
Protection Features Over Current, Over Temperature, Reverse Polarity, Transient Voltage
Temperature Range - Operating -40°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package TO-220-5
Supplier Device Package TO-220-5
Family Part Number MIC29503
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1222423-MIC29503BT
Manufacturer Homepage www.micrel.com
Popularity Medium
Supply and Demand Status Balance

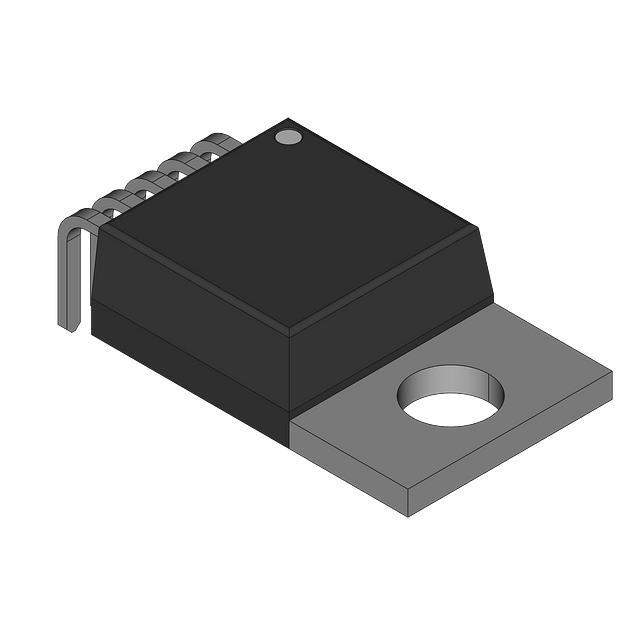

Ultra Librarian 3D Model Ultra Librarian MIC29503BT CAD Model

Description

Microchip Technology MIC29503BT High-Current Low-Dropout Regulator

The MIC29503BT from Microchip Technology is a high-performance, high-current, low-dropout voltage regulator designed to deliver excellent power regulation in a variety of applications. This robust LDO is capable of supplying up to 5A of continuous output current with a typical dropout voltage of just 0.5V at full load, making it an ideal solution for systems that require a stable and efficient power supply.

Constructed with advanced features, the MIC29503BT ensures reliable performance in demanding environments. It incorporates thermal overload protection which safeguards the device against excessive temperature rise, as well as current limit protection to prevent damage from overcurrent conditions. Additionally, the regulator offers adjustable output from 1.24V to 26V, providing designers with the flexibility to tailor the output voltage to their specific requirements.

One of the key advantages of the MIC29503BT is its ease of use. It requires only a minimal number of external components for operation, which simplifies the design process and helps reduce the overall system cost. The regulator is available in a TO-220 package, which is widely used in the industry and known for its good thermal performance. This package allows the MIC29503BT to efficiently dissipate heat, contributing to its reliability and longevity.

The MIC29503BT is suitable for a wide range of applications, including but not limited to, high-current power supplies, post-regulation for switching supplies, battery chargers, and power management for computer and consumer electronics. Its high current capability and low dropout performance make it an excellent choice for designs where voltage regulation with minimal loss is critical.

Overall, the MIC29503BT from Microchip Technology represents a versatile and reliable solution for high-current power regulation needs. Its combination of features, performance, and ease of use make it a preferred choice for engineers and designers working on a variety of electronic projects and applications.
