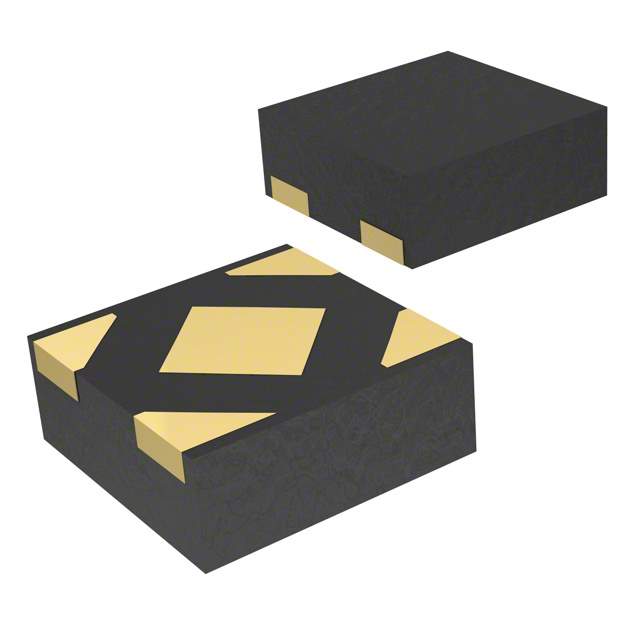

TLV713185PDQNR

Part No TLV713185PDQNR
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 1.85V 150MA 4X2SON / Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 4-X2SON (1x1)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Texas Instruments
Package Tape & Reel
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 1.85V
Voltage Dropout (Max) 0.7V @ 150mA
Current - Output 150mA
Current - Quiescent (Iq) 75 µA
PSRR 70dB ~ 55dB (100Hz ~ 1MHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO)
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 4-XDFN Exposed Pad
Supplier Device Package 4-X2SON (1x1)
Base Product Number TLV713185
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names TLV713185PDQNR-ND,TEXTISTLV713185PDQNR,296-40651-6,-296-40651-1-ND,296-40651-2,296-40651-1,2156-TLV713185PDQNR
Standard Package 3,000
Win Source Part Number 1140873-TLV713185PDQNR
Ultra Librarian 3D Model Ultra Librarian TLV713185PDQNR CAD Model

Description

The TLV713185PDQNR is a high-performance, low-dropout (LDO) voltage regulator from the renowned semiconductor manufacturer Texas Instruments. Designed to meet the requirements of a wide range of applications, this LDO regulator offers a fixed output voltage of 1.85V, making it an ideal choice for powering sensitive analog and digital circuits that require a stable and precise voltage supply.

Key Features:

  • Output Voltage: The device provides a fixed output of 1.85V, which is suitable for various low-voltage applications.
  • High Accuracy: Ensuring a stable output, the TLV713185PDQNR offers excellent load and line regulation, which contributes to the overall performance and reliability of the end application.
  • Low Dropout: The low dropout feature allows the regulator to continue providing a stable output voltage even when the input-to-output voltage differential is minimal, making it highly efficient in battery-operated devices.
  • Current Rating: It can deliver up to 150 mA of continuous output current, which is sufficient for a multitude of low-power applications.
  • Power Supply Rejection Ratio (PSRR): With a high PSRR, the device effectively filters out supply noise, which is critical for powering noise-sensitive components such as precision sensors or reference ICs.
  • Thermal Performance: The TLV713185PDQNR is available in a space-saving 4-pin X2SON package, which offers excellent thermal performance and a small footprint on the PCB.
  • Protection Features: It includes over-current and over-temperature protection to safeguard the device and the downstream circuitry from potential damage due to abnormal operating conditions.

Applications:

The TLV713185PDQNR is versatile and can be used in a variety of applications, including but not limited to:

  • Portable and battery-powered devices
  • Wireless communication systems
  • Power supply for sensors and analog circuits
  • Microcontroller or microprocessor power supplies
  • Healthcare and medical equipment

With its combination of performance, efficiency, and protection features, the TLV713185PDQNR by Texas Instruments is a reliable choice for designers looking to optimize their power management solutions in compact and demanding applications.
