Products specifications

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube/Rail
Status Active
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 6V
Nominal Output Voltage (Min/Fixed) 1.25V
Maximum Output Voltage 5.5V
Dropout Voltage-Max 0.5V @ 1.5A
Output Current 1.5A
Operating Supply Current 30mA
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 1.25 V to 5.5 V
Mounting SMD (SMT)
Case / Package S-PAK-5
Win Source Part Number 023279-MIC37152WR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MIC37152WR CAD Model

Description

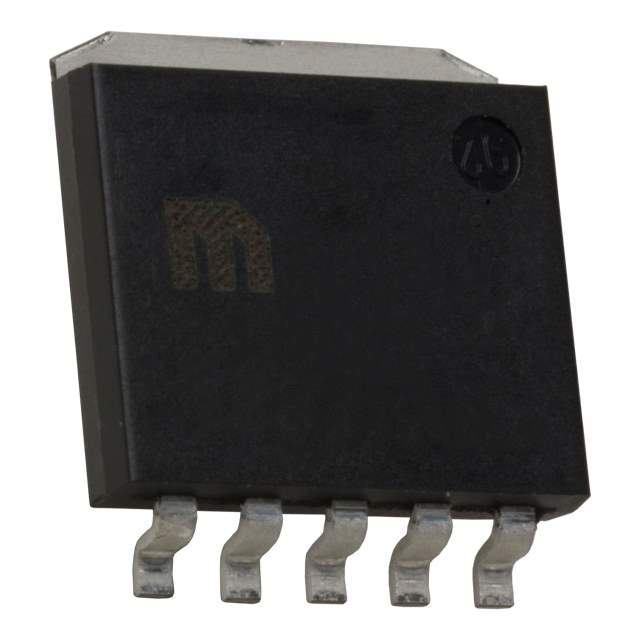

Microchip Technology MIC37152WR Product Overview

The MIC37152WR from Microchip Technology is a high-performance, low-dropout voltage regulator designed for demanding applications that require a high current, up to 1.5A. This regulator is part of Microchip's extensive line of power management solutions, offering both precision and reliability for a variety of electronic devices.

The MIC37152WR operates over an input voltage range of 2.25V to 6V, making it suitable for a wide array of power sources, from single-cell Li-Ion batteries to 5V power supplies. Its low dropout voltage ensures efficient operation even when the input voltage is very close to the output voltage, which is critical for battery-operated devices where maximizing battery life is essential.

One of the key features of the MIC37152WR is its fast transient response, which makes it an ideal choice for applications with rapidly changing loads, such as microprocessors, FPGAs, and DSPs. This feature helps maintain a stable output voltage despite fluctuations in the load, thereby protecting sensitive electronic components from potential damage.

The device also includes several built-in protection features, such as current limit, thermal shutdown, and under-voltage lockout (UVLO). These features ensure that the MIC37152WR not only provides a stable and reliable power supply but also safeguards the electronics it powers against a variety of common electrical issues.

With its adjustable output voltage range from 1.24V to 5.5V, designers have the flexibility to use the MIC37152WR in a multitude of applications, customizing the output to meet the specific needs of their design. Additionally, the regulator's low dropout performance and fast transient response make it particularly well-suited for powering advanced microcontrollers and other digital ICs.

The MIC37152WR is available in a thermally enhanced 16-pin 4.4mm x 5mm MLF® package, which is designed to optimize thermal performance and minimize the overall footprint on the PCB. This compact form factor, combined with its robust feature set, makes the MIC37152WR a versatile and reliable choice for engineers looking to enhance the performance of their power-sensitive designs.
