Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 6 Weeks
Features High-Side Gate Driver IC Non-Inverting 4-TQFN (1.2x1.2)
Manufacturer Microchip Technology
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 4-UDFN Exposed Pad, 4-TMLF®
Case / Package 4-TQFN (1.2x1.2)
Family Name MIC5019
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 576-4152-1, 1611-MIC5019YFT-DKR, MIC5019YFT TR, 1611-MIC5019YFT-CT, MIC5019YFTTR, 1611-MIC5019YFT-DKR-ND, 576-4152-6, 1611-MIC5019YFT-DKRINACTIVE, 576-4152-2
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 884750-MIC5019YFT-TR
Ultra Librarian 3D Model Ultra Librarian MIC5019YFT-TR CAD Model

Description

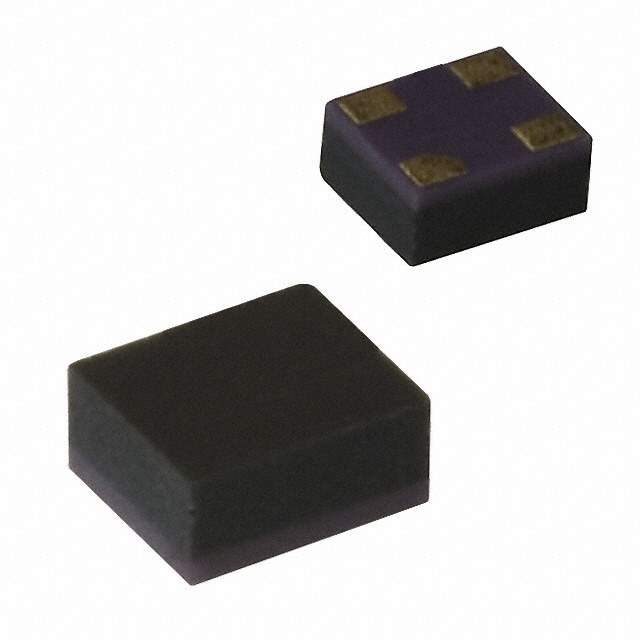

Microchip Technology MIC5019YFT-TR High-Side MOSFET Driver

The MIC5019YFT-TR from Microchip Technology is a compact, high-side MOSFET driver designed for driving power MOSFETs from a low-voltage control signal. This device is particularly suitable for applications where power MOSFETs need to be switched on and off by low-voltage logic signals, such as in battery-powered systems, portable devices, and low-voltage control circuits.

With its tiny footprint, the MIC5019YFT-TR is an ideal solution for space-constrained applications. It comes in a 4-pin Thin SOT-23 package, which allows for efficient use of PCB space without sacrificing performance. This high-side driver is capable of operating from a supply voltage ranging from 2.7V to 9V, making it versatile for various system voltages.

The device features a low quiescent current, which is critical for battery-operated devices where power conservation is a priority. Additionally, the MIC5019YFT-TR provides built-in protection features such as short-circuit protection and thermal shutdown, ensuring reliable operation and longevity of the end application. Its fast switching speed enhances performance in applications requiring high-frequency operation.

Key specifications of the MIC5019YFT-TR include:

  • Supply Voltage Range: 2.7V to 9V
  • Output Current: 1.2A peak
  • Low Quiescent Current
  • Short-Circuit Protection
  • Thermal Shutdown
  • Fast Switching Speed
  • Package: 4-pin Thin SOT-23

This high-side driver is ideal for driving high-power and high-speed MOSFETs in a variety of applications, including solenoid drivers, relay drivers, and power switches in consumer electronics, automotive, and industrial control systems. The MIC5019YFT-TR's robustness and ease of use make it a preferred choice for designers looking to integrate a high-side switch with minimal external components and complexity.

Microchip Technology's commitment to quality and performance is evident in the MIC5019YFT-TR, making it a reliable and efficient choice for your high-side driving needs.
