Products specifications

Category Integrated Circuits(ICs)
Family PMIC - Power Management - Specialized
Manufacturer Linear Technology
Win Source Part Number 303343-LTC3455EUF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LTC3455
Introduction Date February 03, 2004
ECCN EAR99
Country of Origin Malaysia, Thailand
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian LTC3455EUF CAD Model

Description

Linear Technology LTC3455EUF Dual DC/DC Converter

The LTC3455EUF from Linear Technology is a versatile and efficient dual DC/DC converter integrated circuit, designed for portable applications requiring multiple power supply rails. This high-performance product is encapsulated in a compact 24-lead QFN package, making it an ideal solution for space-constrained designs.

Key Features:

  • Adjustable Output Voltage: The device features two independently adjustable output voltages, which can be finely tuned to meet the requirements of various components within an electronic system.
  • High Efficiency: With its advanced design, the LTC3455EUF achieves high efficiency, which is crucial for extending battery life in portable devices.
  • Low Noise Operation: It operates at 1MHz, allowing the use of small, low-cost capacitors and inductors while maintaining low noise characteristics, essential for sensitive RF and audio circuitry.
  • Integrated Synchronous Rectification: The inclusion of internal synchronous rectifiers enhances efficiency by reducing power loss during the conversion process.
  • Thermal Protection: The LTC3455EUF is equipped with thermal shutdown protection, safeguarding the device and the system against excessive temperatures.

Applications:

  • Portable Medical Devices
  • Handheld Instruments
  • Wireless Modems
  • GPS Receivers
  • Digital Cameras

Technical Specifications:

  • Input Voltage Range: 2.7V to 5.5V
  • Output Voltage Range: 0.8V to VIN
  • Switching Frequency: 1MHz

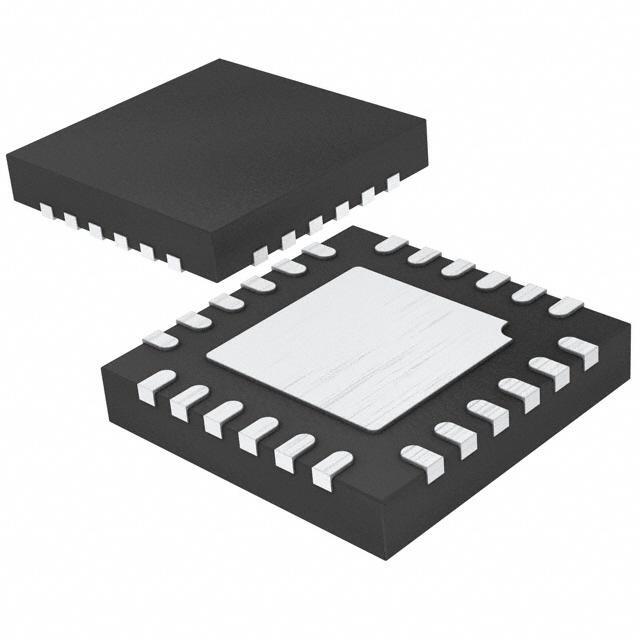

  • Package: 24-lead QFN (4mm × 4mm)

The LTC3455EUF is not just a power supply component; it is a solution engineered to meet the rigorous demands of modern portable electronics. By integrating two DC/DC converters into a single chip, Linear Technology provides a compact, efficient, and reliable power management solution that is well-suited for a wide array of applications.
