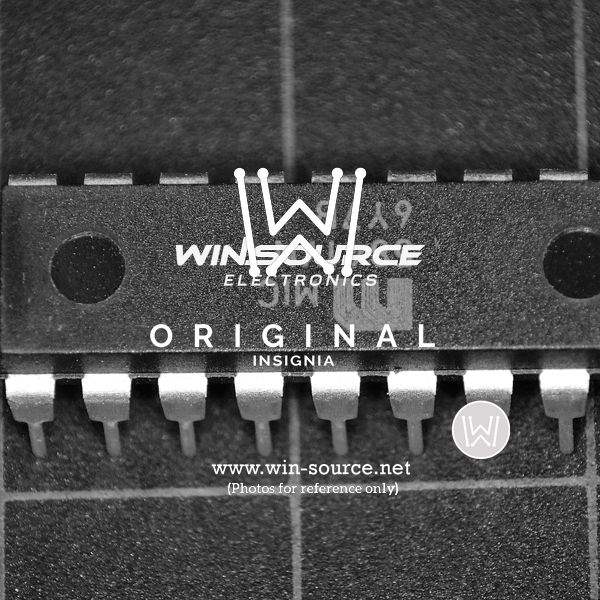

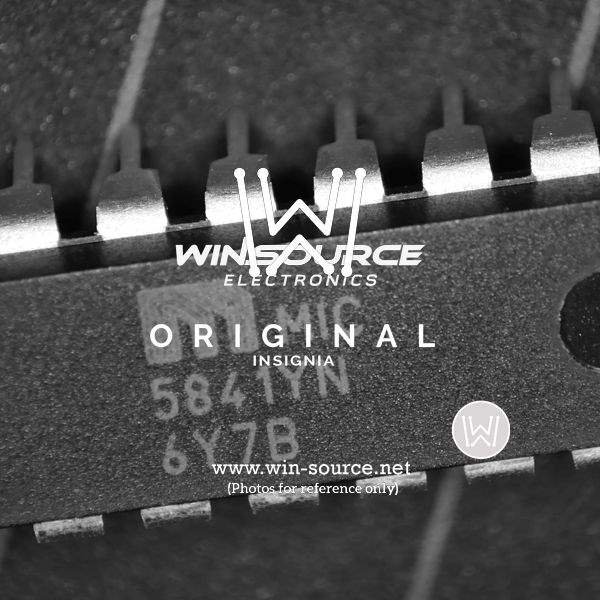

The MIC5841YN is a high-voltage, high-current integrated circuit manufactured by Microchip Technology, designed for driving inductive loads, such as relays, solenoids, and stepping motors. This driver is particularly well-suited for applications that require multiple channels of output, as it provides an 8-bit serial interface and high-voltage push-pull outputs.

Key Features

• Integrated 8-Bit Serial-Input Latched Drivers: The MIC5841YN features an 8-bit CMOS shift register and latches with high-voltage MOSFET transistor output drivers. This design allows for efficient serial-to-parallel data conversion and simplifies the process of controlling multiple output lines.
• High Voltage/Current Handling: The device is capable of handling up to 50V and 500mA per channel, making it capable of driving a wide range of inductive loads without the need for additional power components.
• Output Clamp Diodes: Clamp diodes are included for inductive transient suppression, which is essential for protecting the device and the rest of the circuit when driving inductive loads that can generate voltage spikes.
• Low Power Consumption: Designed with power efficiency in mind, the MIC5841YN minimizes power dissipation, which is crucial for applications where power efficiency is a priority.
• Wide Operating Temperature Range: It operates over a temperature range of -40°C to +85°C, making it suitable for industrial and automotive environments where temperatures can vary significantly.

Applications

The versatility of the MIC5841YN makes it an excellent choice for a variety of applications, including:

• Relay and Solenoid Drivers
• LED Displays and Signboards
• Stepper Motor Controls
• Industrial Controls
• Automotive Control Systems

With its robust design and powerful output capabilities, the MIC5841YN is a reliable and efficient solution for any design that requires high-voltage and high-current driving capabilities.
