Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Microchip Technology
Packaging Tube/Rail
Status Active
Frequency 300MHz to 450MHz
Sensitivity -112.5dBm
Data Rate (Max) 20kbps
Modulation or Protocol ASK, OOK
Applications General Purpose
Current - Receiving 6mA
Data Interface PCB, Surface Mount
Antenna Connector PCB, Surface Mount
Features RSSI Equipped
Supply Voltage - Operating 3 V to 3.6 V
Temperature Range - Operating -40°C to 105°C
Case / Package 16-QSOP
Win Source Part Number 023345-MICRF220AYQS
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MICRF220AYQS CAD Model

Description

Introducing the MICRF220AYQS from Microchip Technology

The MICRF220AYQS is a state-of-the-art ASK/OOK (Amplitude Shift Keying/On-Off Keying) RF receiver IC from the renowned manufacturer Microchip Technology. This integrated circuit is designed for high performance and low power consumption, making it an ideal solution for a wide range of wireless communication applications.

Operating in the 300MHz to 450MHz frequency range, the MICRF220AYQS provides designers with a flexible platform to create robust wireless links for various applications, including remote keyless entry systems, garage door openers, and home automation networking. Its high sensitivity and selectivity ensure reliable signal reception even in environments with high levels of interference.

The MICRF220AYQS boasts a number of features that enhance its performance and ease of use. Its fully integrated VCO (Voltage-Controlled Oscillator) and PLL (Phase-Locked Loop) synthesizer minimize the number of external components required, simplifying the design process and reducing the overall system cost. The device also includes an automatic gain control (AGC) circuit that adapts the receiver's gain to the incoming signal strength, ensuring optimal performance across various signal conditions.

With its low power consumption, the MICRF220AYQS is particularly well-suited for battery-operated devices. The receiver can operate in a low-power mode when not actively receiving a signal, further extending battery life in portable applications. This feature is critical for devices that need to maintain long-term readiness, such as smoke detectors and security sensors.

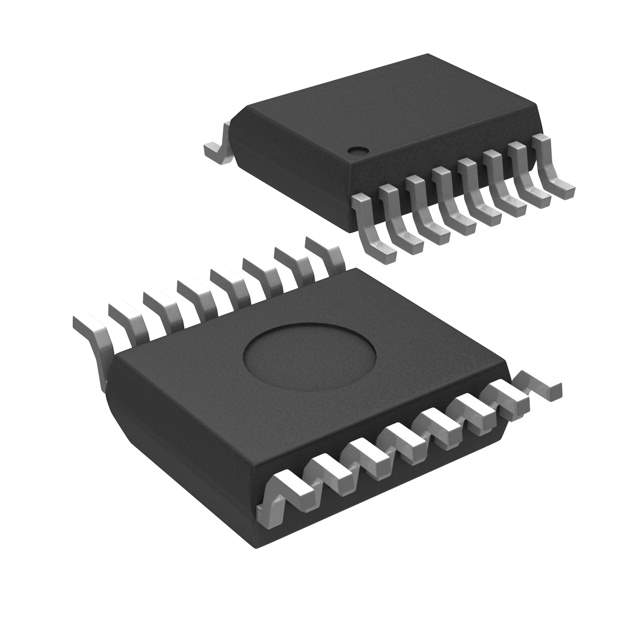

The MICRF220AYQS is available in a compact 16-pin QSOP package, making it a space-saving solution for today's miniaturized electronic devices. Its small footprint allows it to be easily integrated into tight PCB layouts without sacrificing performance or functionality.

For developers looking to streamline their design process, Microchip Technology provides comprehensive support for the MICRF220AYQS, including datasheets, application notes, and design tools. This support ensures that engineers can quickly and efficiently incorporate this RF receiver into their designs, reducing time-to-market for their products.

In summary, the MICRF220AYQS from Microchip Technology represents a blend of performance, efficiency, and design convenience, making it an excellent choice for developers seeking to implement reliable wireless communication in their products.
