Products specifications Report Issue?

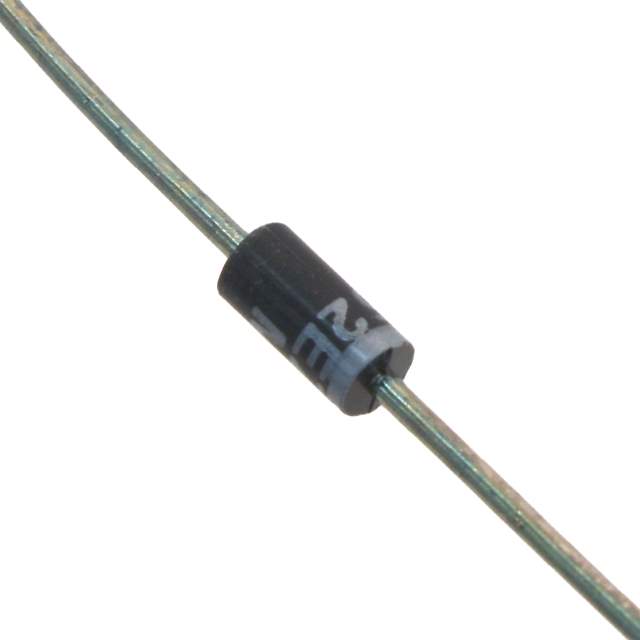

Category Circuit Protection>TVS - Diodes
Mfr Microchip Technology
Series Military, MIL-PRF-19500
Package Bulk
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 17.1V
Voltage - Breakdown (Min) 19V
Voltage - Clamping (Max) @ Ipp 27.7V
Current - Peak Pulse (10/1000µs) 22A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case T-18, Axial
Supplier Device Package T-18
Base Product Number P6KE20
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1086-7070,1086-7070-MIL
Standard Package 1
Win Source Part Number 1133301-MP6KE20A
Ultra Librarian 3D Model Ultra Librarian MP6KE20A CAD Model

Description

The MP6KE20A is a robust transient voltage suppression diode designed by Microchip Technology to protect sensitive electronic equipment from voltage spikes and surges. This device is a part of the 600W series, which is specifically engineered to shield circuits against the destructive forces of transient voltage events such as lightning strikes, inductive load switching, and electrostatic discharge (ESD).

Key Features:

  • Peak Pulse Power: The MP6KE20A offers a peak pulse power dissipation of 600 Watts at 10/1000μs waveform, which ensures reliable protection against high-energy transients.
  • Breakdown Voltage: With a breakdown voltage range of 19.0 to 21.1 volts, it provides precise voltage regulation, preventing damage to voltage-sensitive components.
  • Clamping Voltage: A maximum clamping voltage of 27.7 volts ensures that any voltage spike exceeding this threshold is effectively clamped, safeguarding downstream circuitry.
  • Reverse Stand-off Voltage: The reverse stand-off voltage is rated at 17.1 volts, providing an optimal working voltage level for numerous applications.
  • Response Time: It boasts a response time of less than 1 picosecond, offering immediate protection against transient voltage increases.
  • Package: The MP6KE20A comes in an axial lead package, which facilitates easy installation and is compatible with various PCB layouts.
  • Operating Temperature: It can operate over a temperature range of -55°C to +175°C, making it suitable for a wide range of environments and applications.

Applications:

The MP6KE20A is ideal for protecting sensitive electronics in a variety of applications, including:

  • Power supply circuits
  • Telecommunication systems
  • Industrial electronics
  • Aerospace and automotive systems
  • Consumer electronics

Reliability and Quality:

Microchip Technology ensures that the MP6KE20A meets stringent quality and reliability standards. Each device is subjected to rigorous testing to guarantee optimal performance even under the harshest conditions. By choosing the MP6KE20A, designers can be confident in delivering enhanced protection for their electronic products.
