Products specifications

Win Source Part Number WS1202740-PIC18F16Q41-E/SO
Win Source Part Number Cross
Manufacturer Microchip Technology
Category Integrated Circuits (ICs) Embedded Microcontrollers
Series PIC® 18F
Package Tube
Product Status Active
Core Processor PIC
Core Size 8-Bit
Speed 64MHz
Connectivity I²C, LINbus, SPI, UART/USART
Ultra Librarian 3D Model Ultra Librarian PIC18F16Q41-E/SO CAD Model

Description

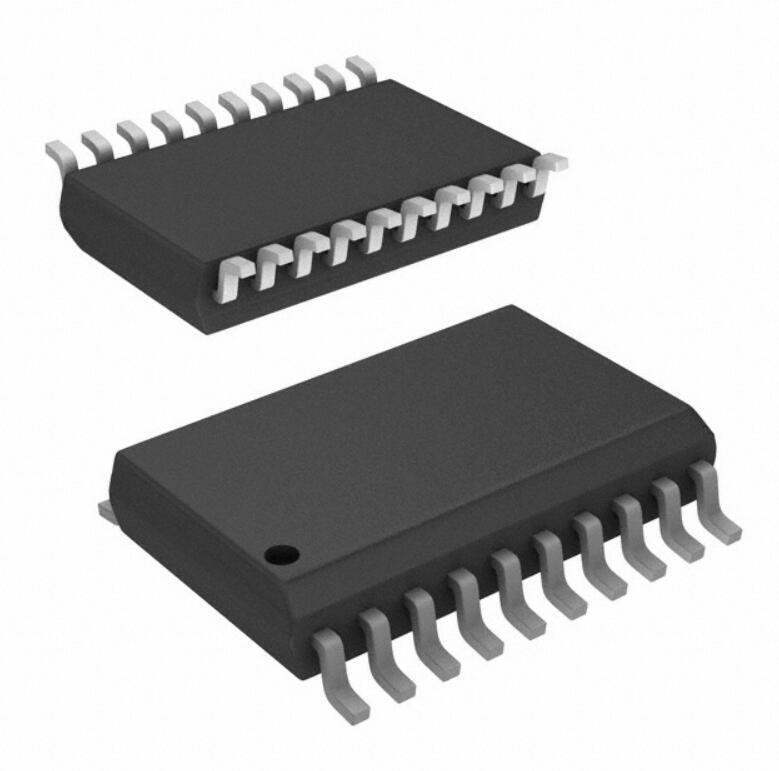

Product Overview: PIC18F16Q41-E/SO

The PIC18F16Q41-E/SO from Microchip Technology is a high-performance microcontroller that combines the efficiency of Microchip's 8-bit architecture with the versatility required for a wide array of applications. This device is part of the PIC18 Q41 family, which is renowned for its intelligent analog and core-independent peripherals, making it ideal for smart, connected, and secure designs.

Key Features

  • Enhanced Mid-range Core: With a C Compiler Optimized RISC architecture, the PIC18F16Q41-E/SO provides a perfect balance between power efficiency and performance, with a clock speed of up to 64 MHz.
  • Memory Features: It boasts 16 KB of Flash memory and 2 KB of SRAM, ensuring ample space for application code and data storage.
  • Intelligent Analog: This microcontroller includes advanced analog features such as a 12-bit ADC with computation, multiple operational amplifiers, and a 5-bit DAC, enabling sophisticated signal processing and real-time system response.
  • Core Independent Peripherals (CIPs): The device is equipped with CIPs like Configurable Logic Cells (CLC), Complementary Waveform Generator (CWG), and multiple timers, which can handle tasks independently from the CPU, reducing power consumption and increasing system efficiency.
  • Communication Interfaces: It supports multiple communication protocols including SPI, I2C, UART, LIN, and more, making it highly adaptable for communication with peripherals and other microcontrollers.
  • Package Type: The PIC18F16Q41-E/SO is available in a 28-pin SOIC package, providing a compact footprint for space-constrained applications.

Applications

The microcontroller is suitable for a diverse range of applications, such as:

  • Industrial Control Systems
  • Automotive Systems
  • Home Automation
  • Consumer Electronics
  • Internet of Things (IoT) Devices

Conclusion

With its robust set of features and core-independent capabilities, the PIC18F16Q41-E/SO from Microchip Technology is designed to address the needs of developers requiring a versatile and efficient MCU for their sophisticated designs. Whether you're working on automation, connectivity, or control applications, this microcontroller offers a reliable and scalable solution.
