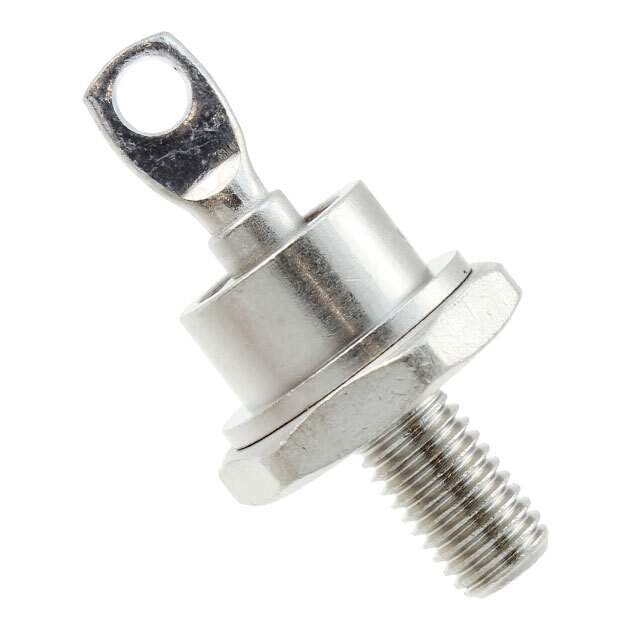

The SBR6045E3 from Microchip Technology is a state-of-the-art Schottky Barrier Rectifier designed to meet the rigorous demands of high-efficiency power conversion systems. This robust component is optimized for low forward voltage drop and high current handling capability, making it an ideal choice for applications requiring superior thermal performance and low power loss.
Key Features
- High Forward Surge Capability: The SBR6045E3 is capable of handling high surge currents, which is essential for applications that experience transient overcurrent conditions.
- Low Power Loss: With a low forward voltage drop, this rectifier ensures minimal power loss during operation, contributing to the overall efficiency of the power conversion system.
- High Temperature Operation: Designed to withstand high operating temperatures, the SBR6045E3 maintains its performance reliability even under thermal stress.
- Super Barrier Rectifier Technology: Utilizing Microchip’s proprietary Super Barrier Rectifier technology, this component offers a superior alternative to traditional Schottky diodes, with enhanced surge capability and stability.
Applications
The versatility of the SBR6045E3 makes it suitable for a wide range of applications, including:
- Power supply units
- DC-DC converters
- Free-wheeling diodes in inverter circuits
- Automotive applications
- High-frequency rectification
Product Specifications
Parameter
Value
Peak Repetitive Reverse Voltage
45V
Average Rectified Forward Current
60A
Forward Voltage Drop
Typically 0.55V at 60A
Operating Temperature Range
-55°C to +150°C
With its exceptional performance and reliability, the Microchip Technology SBR6045E3 is a premier choice for engineers and designers looking to enhance the efficiency and durability of their power conversion systems.
