Products specifications

Category Integrated Circuits (ICs)>Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Mfr Microchip Technology
Series Precision Edge®
Package Tube
Type Clock Divider
PLL No
Input CML, LVDS, PECL
Output LVDS
Number of Circuits 1
Frequency - Max 3.2GHz
Divider/Multiplier Yes/No
Voltage - Supply 2.375V ~ 2.625V
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)

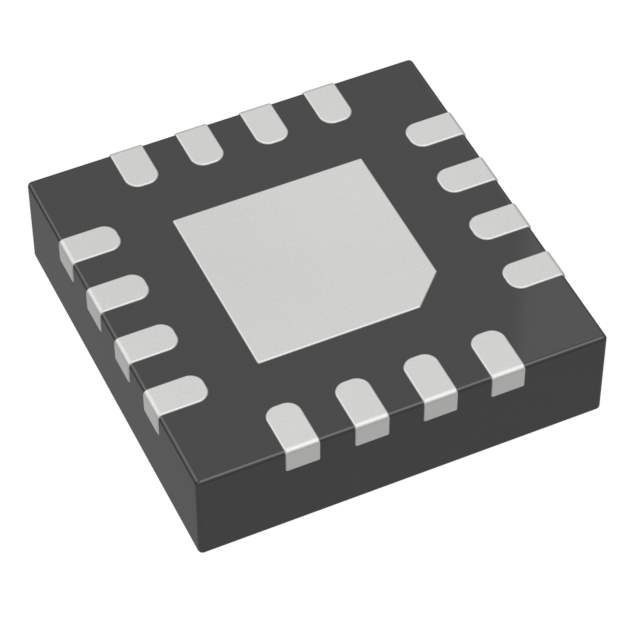

Package / Case 16-VFQFN Exposed Pad
Supplier Device Package 16-QFN (3x3)
Base Product Number SY89231
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 576-2113-5,576-2113-5-ND,576-2965-5
Standard Package 100
Win Source Part Number 997845-SY89231UMG
Ultra Librarian 3D Model Ultra Librarian SY89231UMG CAD Model

Description

Microchip Technology's SY89231UMG: High-Speed, Precision LVDS Buffer

The SY89231UMG by Microchip Technology is a cutting-edge, high-speed, 3.3V precision LVDS buffer designed to meet the rigorous demands of high-speed data transmission systems. This device is part of Microchip's precision monolithic high-speed line, which is renowned for its reliability and performance in a variety of applications.

The SY89231UMG boasts an impressive data throughput capability with minimal skew, making it an ideal choice for applications requiring high data integrity and timing precision. It features a fail-safe input design that ensures a logic-high output if the inputs are open or undriven, providing additional reliability in your system design.

This high-performance buffer is equipped with a differential input that is compatible with LVPECL, CML, or LVDS signal levels. The outputs are 800mV LVDS signals, which are known for their low-noise characteristics and reduced power consumption compared to other signaling technologies. This makes the SY89231UMG not only a powerful solution for high-speed communication but also an energy-efficient one.

With a wide operating temperature range, the SY89231UMG is suitable for use in harsh environments, ensuring consistent performance across various conditions. The device is housed in a compact 16-pin MLF® (Micro Lead Frame) package, which allows for efficient use of board space without compromising on functionality.

Key features of the SY89231UMG include:

  • Guaranteed AC performance over temperature and voltage:
    • DC-to >3.2Gbps throughput
    • Less than 50ps within-device skew
  • Fail-safe input design ensures a logic-high LVDS output level when LVDS inputs are open or shorted
  • Input compatible with LVPECL, CML, or LVDS logic levels
  • 3.3V power supply voltage
  • Industrial temperature range: -40°C to +85°C
  • Space-saving 16-pin MLF® package

The SY89231UMG is a testament to Microchip Technology's commitment to providing advanced solutions for high-speed signal processing. Whether it's for telecommunications, computing, networking, or industrial applications, this precision LVDS buffer is engineered to deliver performance, reliability, and efficiency.
