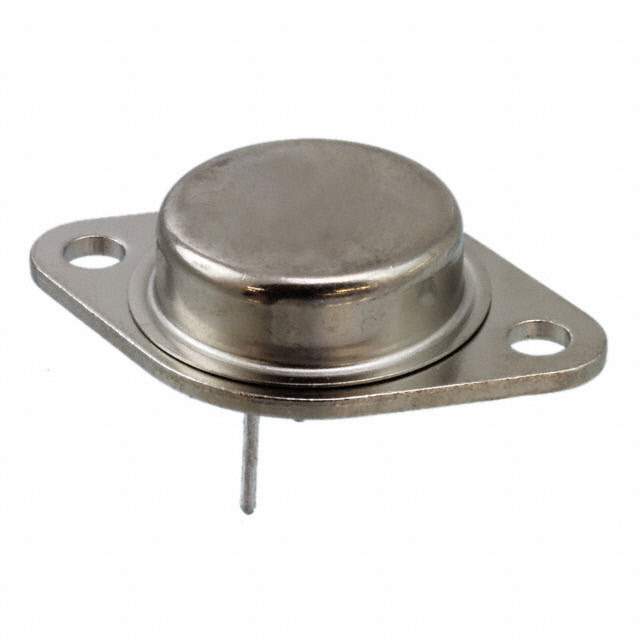

JANTXV2N5745 Real Image
Same model may have multiple batches, images only for reference.

JANTXV2N5745

Part No JANTXV2N5745
Manufacturer Microsemi Corporation
Catalog Transistors (BJT) - Single
Description TRANS PNP 80V 20A TO-3
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Series Military, MIL-PRF-19500/433
Packaging Bulk
Transistor Type PNP
Current - Collector (Ic) (Maximum) 20A
Voltage - Collector Emitter Breakdown (Maximum) 80V
Vce Saturation (Maximum) @ Ib, Ic 1V @ 1A, 10A
Current - Collector Cutoff (Maximum) 100μA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 15 @ 10A, 2V
Power - Max 5W
Operating Temperature Range -55°C ~ 200°C (TJ)
Mounting Style Through Hole
Package TO-204AA, TO-3
Manufacturer Package TO-3
Win Source Part Number 762265-JANTXV2N5745
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name 2N5745
Introduction Date November 19, 1998
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian JANTXV2N5745 CAD Model

Description

The JANTXV2N5745 from Microsemi Corporation is a high-power PNP transistor.

  • Maximum Power: 5W
  • Maximum Collector-Emitter Breakdown Voltage: 80V
  • DC Current Gain: 15 @ 10A, 2V
  • Collector Cutoff Current: 100μA
  • Demand: Medium
  • Supply Status: Limited
  • Package: TO-3
