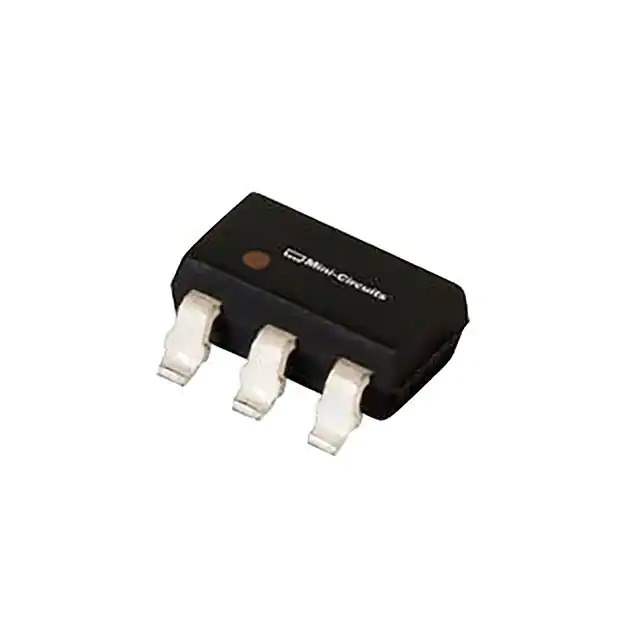

SP-2G+ Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Power Dividers/Splitters
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Insertion Loss 0.4dB
Frequency 1.42 GHz ~ 1.66 GHz
Specifications Isolation (Min) 19dB, 1.25 VSWR (Max), 3° Imbalance (Max)
Size / Dimension 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm)
Package / Case SOT-23-6
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 336820-SP-2G+
Ultra Librarian 3D Model Ultra Librarian SP-2G+ CAD Model

Description

The 336820-SP-2G+ is an RF Power Divider/Splitter designed for applications in RF and wireless systems.

  • Frequency Range: 1.42 GHz to 1.66 GHz
  • Insertion Loss: 0.4dB
  • Package Size: 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm)
  • Package: SOT-23-6
  • Isolation: 19dB minimum
  • VSWR: 1.25 maximum
  • Imbalance: 3° maximum
  • Manufacturer: Mini-Circuits
  • Standard Package: 1,000 pcs
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8548.00.0000
