Product Overview: ADA4303-2ACPZ-R7

The ADA4303-2ACPZ-R7 is a high-performance, active RF splitter from Analog Devices Inc., designed to distribute a single input signal into two identical outputs with exceptional precision and minimal loss. This component is part of Analog Devices’ extensive range of RF and microwave products, tailored for applications that demand high-quality signal processing.

Key Features

• Frequency Range: The device operates over a broad frequency range, making it suitable for a variety of RF applications.
• Low Noise Figure: With its low noise figure, the ADA4303-2ACPZ-R7 ensures that signal integrity is maintained through the splitting process.
• High Isolation: The product provides high isolation between the output ports, which is critical in preventing signal crosstalk and maintaining the purity of the output signals.
• Integrated Biasing: The device includes integrated biasing circuitry, which simplifies the design and reduces the need for external components.

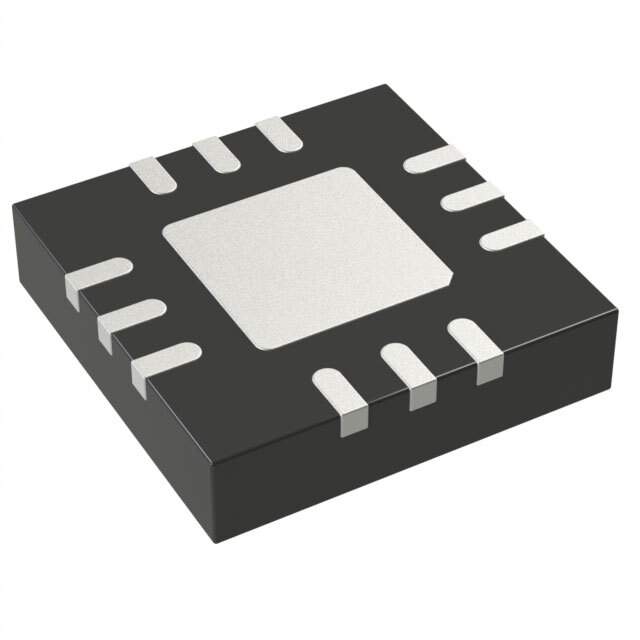

• Surface-Mount Package: Housed in a compact LFCSP (Lead Frame Chip Scale Package), the ADA4303-2ACPZ-R7 is ideal for space-constrained applications.

Applications

The ADA4303-2ACPZ-R7 is versatile and can be used in various applications, including:

• Cable television (CATV) systems
• Set-top boxes
• Home networking
• Signal distribution systems
• RF/IF communication systems

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the ADA4303-2ACPZ-R7 is no exception. It is built to meet rigorous industry standards, ensuring reliability and performance in the most demanding environments. The part number suffix 'R7' indicates that the product is available in a 7-inch reel, suitable for automated assembly processes.

Ordering Information

The ADA4303-2ACPZ-R7 is available for order, and potential buyers can request samples or contact Analog Devices Inc. for more information on pricing and availability. The product's technical specifications and datasheets are accessible online, providing detailed information to help in the selection and design-in process.
