Same model may have multiple batches, images only for reference.

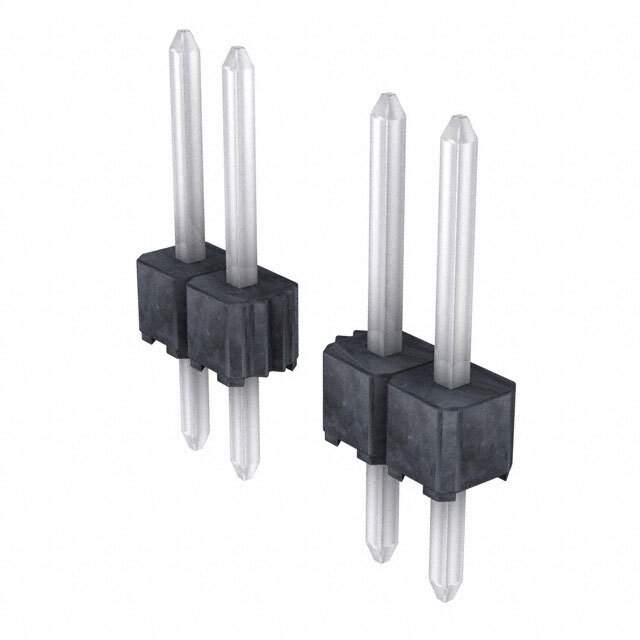

0901200160 Real Image
Same model may have multiple batches, images only for reference.

0901200160

Part No 0901200160
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 40POS 2.54MM / Connector Header Through Hole 40 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series C-Grid III 90120
Package Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 40
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.266" (6.75mm)
Contact Length - Post 0.114" (2.90mm)
Overall Contact Length 0.478" (12.15mm)
Insulation Height 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 118.1µin (3.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyester, Glass Filled
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Applications Automotive, General Purpose
Base Product Number 90120
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1348635-0901200160
Ultra Librarian 3D Model Ultra Librarian 0901200160 CAD Model

Description

The C-Grid III 90120 series header connector is a male pin connector with a push-pull fastening type.

  • Positions: 40
  • Positions Loaded: All
  • Rows: Single
  • Termination Type: Solder
  • Contact Material: Brass
  • Shrouded: Unshrouded
  • Contact Shape: Square
  • Contact Length - Mating: 0.266 inches
  • Contact Length - Post: 0.114 inches
  • Insulation Material: Polyester, Glass Filled
  • Insulation Height: 0.098 inches
  • Application: Automotive and General Purpose
  • Pitch: 0.100 inches (2.54mm)
  • Contact Finish - Mating: Tin, 118.1μin (3.00μm) Thickness
  • Contact Finish - Post: Tin
  • Operating Temperature: -55°C to 125°C
