H2412S-1WR3 MORNSUN Science& Technology Ltd.

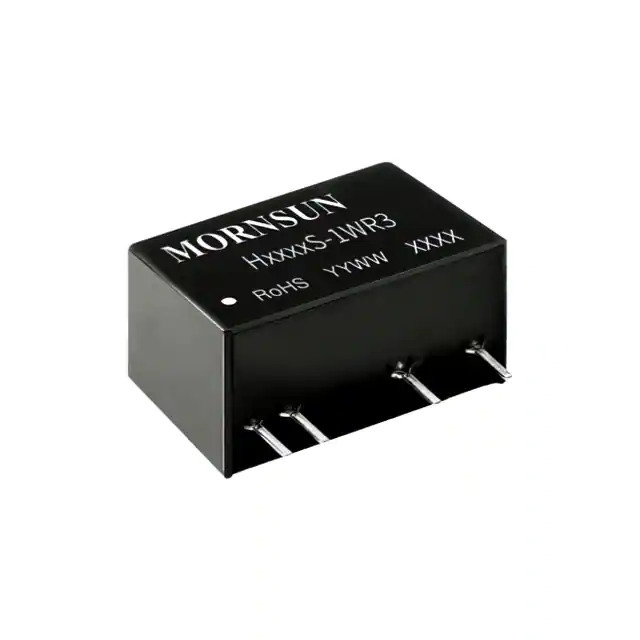

Same model may have multiple batches, images only for reference.

H2412S-1WR3

Part No H2412S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER1
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series H_S-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 12V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 84mA
Power (Watts) 1.008 W
Voltage - Isolation 6 kV
Applications ITE (Commercial), Medical
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 76%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.39" W x 0.94" H (19.5mm x 9.8mm x 24.0mm)
Supplier Device Package -
Control Features -
Approval Agency -
Standard Number 60601-1; 62368-1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1373089-H2412S-1WR3
Ultra Librarian 3D Model Ultra Librarian H2412S-1WR3 CAD Model

Description

The H2412S-1WR3 is a DC-DC converter module designed for board mount applications.

  • Series: H_S-1WR3
  • Manufacturer: Mornsun America, LLC
  • Features: Isolation
  • Operating Temperature: -40°C ~ 105°C (with derating)
  • Size: 0.77" L x 0.39" W x 0.94" H (19.5mm x 9.8mm x 24.0mm)
  • Applications: ITE (Commercial), Medical
  • Output Current: 84mA (Max)
  • Power Rating: 1.008W
  • Input Voltage: 21.6V ~ 26.4V
  • Output Voltage: 12V
  • Voltage Isolation: 6kV
  • Standard Numbers: 60601-1, 62368-1
  • Efficiency: 76%
