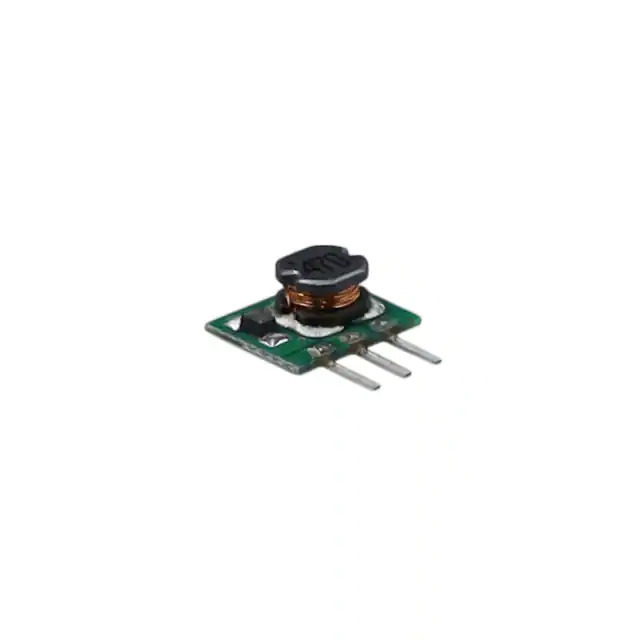

Same model may have multiple batches, images only for reference.
K7815-500R3-LB MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

K7815-500R3-LB

Part No K7815-500R3-LB
Catalog Power Supplies Board Mount DCDC Converters
Description LINEAR REGULATOR REPLACEMENT DC
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series K78XX-500R3-LB
Package Tray
Product Status Active
Type Linear Regulator Replacement
Number of Outputs 1
Voltage - Input (Min) 19V, 8V
Voltage - Input (Max) 36V, 21V
Voltage - Output 1 15V, -15V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 500mA, 150mA
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 95%
Mounting Type Through Hole
Package / Case 3-SIP Module
Size / Dimension 0.40" L x 0.24" W x 0.34" H (10.3mm x 6.0mm x 8.6mm)
Supplier Device Package -
Control Features -
Approval Agency CE
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372753-K7815-500R3-LB
Ultra Librarian 3D Model Ultra Librarian K7815-500R3-LB CAD Model

Description

The K7815-500R3-LB is a linear regulator replacement module designed for board mount applications and is part of the K78XX-500R3-LB series manufactured by Mornsun America, LLC.

  • Function: Short Circuit Protection (SCP)
  • Current - Output Max: 500mA
  • Power (Watts): 150mA
  • Voltage - Input: 8V ~ 36V
  • Voltage - Output: 15V, -15V
  • Mounting Type: Through Hole
  • Package / Case: 3-SIP Module
  • Applications: ITE (Commercial)
  • Efficiency: 95%
  • REACH Status: REACH
  • ECCN: Yes
  • Product Status: Active
