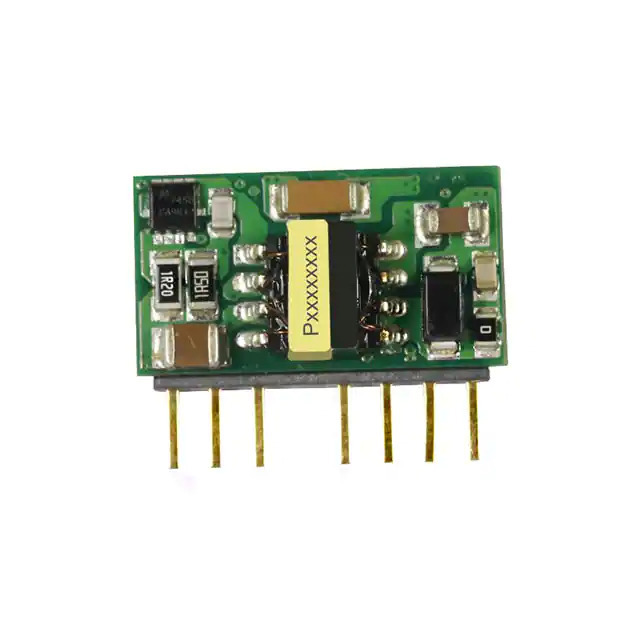

Same model may have multiple batches, images only for reference.
VCB4805SO-6WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

VCB4805SO-6WR3

Part No VCB4805SO-6WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER, 6W, 5V
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series VCB48_SO-6WR3 (6W)
Package Tray
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 1.2A
Power (Watts) 6 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 81%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.32" W x 0.50" H (22.0mm x 8.2mm x 12.8mm)
Supplier Device Package -
Control Features -
Approval Agency CE
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372701-VCB4805SO-6WR3
Ultra Librarian 3D Model Ultra Librarian VCB4805SO-6WR3 CAD Model

Description

The Mornsun America, LLC VCB48_SO-6WR3 (6W) is a DC-DC converter module designed for board mount applications.

  • Package: 8-SIP Module, 7 Leads
  • Output Current: 1.2A (Max)
  • Power Rating: 6W
  • Output Voltage: 5V (Single)
  • Efficiency: 81%
  • Operating Temperature: -40°C to 85°C (with derating)
  • Application: ITE (Commercial)
  • Standard: 62368-1
  • Approval: CE
  • Input Voltage: 36V to 75V
  • Mounting: Through-Hole
