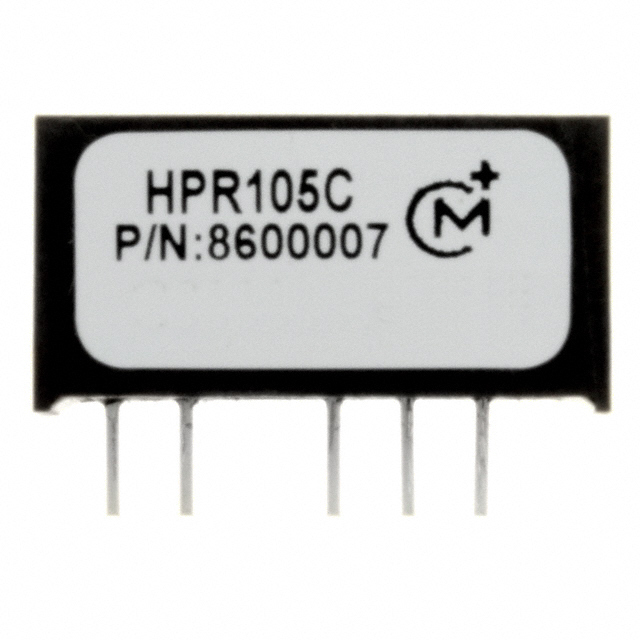

HPR105C Murata Power Solutions Inc.
Same model may have multiple batches, images only for reference.

HPR105C

Part No HPR105C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC +/-15V +/-25MA SIP / Module DC-DC 5VIN 2-OUT 15V/-15V 0.025A/-0.025A 0.75W 5-Pin SIP
Datasheet
HPR105C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series HPR1xxC
Packaging Tube
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 4.5V
Voltage Input MAX 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 25mA, 25mA
Power (Watts) 1W
Voltage - Isolation 750V
Applications ITE (Commercial)
Operating Temperature Range -40°C ~ 100°C
Efficiency 75%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm)
Win Source Part Number 776183-HPR105C
Popularity Medium
Supply and Demand Status Limited
Family Name HPR105C
Introduction Date May 09, 2008
ECCN EAR99
Country of Origin China, United States of America
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian HPR105C CAD Model

Description

The HPR105C is an Isolated Module designed and manufactured by Murata Power Solutions Inc.

  • Series: HPR1xxC
  • Packaging: 7-SIP Module, 5 Leads
  • Applications: ITE (Commercial)
  • Output Voltage: 15V, -15V
  • Voltage Isolation: 750V
  • Efficiency: 75%
  • Operating Temperature: -40°C to 100°C
  • Mounting Type: Through Hole
  • Dimensions: 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm)
  • Input Voltage Range: 4.5V to 5.5V
  • Maximum Output Current: 25mA (both outputs)
  • Introduction Date: May 09, 2008
  • Estimated EOL Date: 2022
  • Popularity: Medium
  • Supply and Demand Status: Limited
