Same model may have multiple batches, images only for reference.

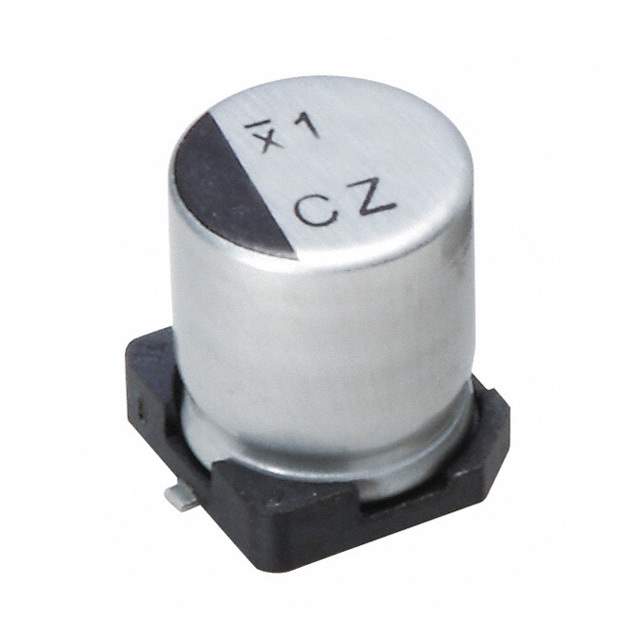

UCZ1V470MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UCZ1V470MCL1GS

Part No UCZ1V470MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 35V SMD / 47 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 200mOhm 3000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 200mOhm
Lifetime @ Temp. 3000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 135 mA @ 120 Hz
Ripple Current @ High Frequency 270 mA @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-4319-6,493-4319-2,493-4319-1
Standard Package 500
Win Source Part Number 1329934-UCZ1V470MCL1GS
Ultra Librarian 3D Model Ultra Librarian UCZ1V470MCL1GS CAD Model

Description

The Nichicon UCZ1V470MCL1GS aluminum electrolytic capacitor is a high-quality component that is designed to provide superior performance and reliability in a variety of applications.

  • Capacitance: 47 μF
  • Voltage Rating: 35 V
  • Package: Radial, can - SMD
  • Mounting: Surface Mount
  • ROHS3 Compliant: Yes
  • Ripple Current: 135 mA @ 120 Hz
  • Ripple Current: 270 mA @ 100 kHz
