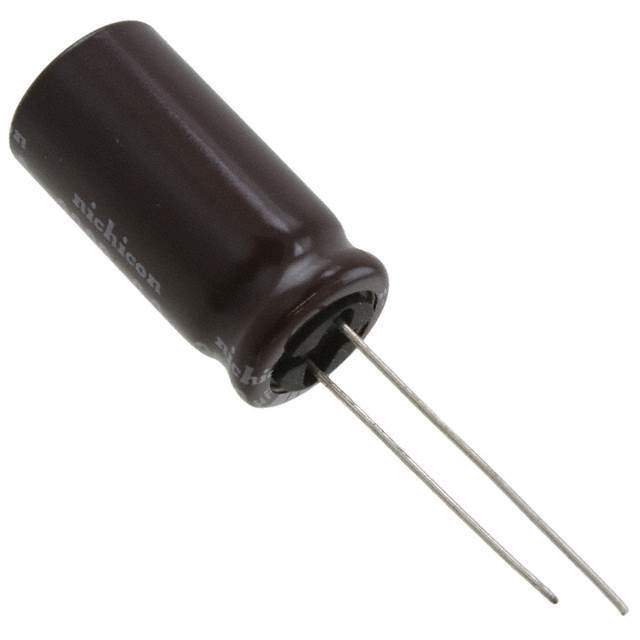

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPM
Package Bulk
Product Status Not For New Designs
Capacitance 1500 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.53 A @ 120 Hz
Ripple Current @ High Frequency 1.7 A @ 10 kHz
Impedance 36 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-15708,UPM1C152MHD-ND
Standard Package 800
Win Source Part Number 1156795-UPM1C152MHD
Ultra Librarian 3D Model Ultra Librarian UPM1C152MHD CAD Model

Description

The Nichicon UPM1C152MHD is an aluminum electrolytic capacitor with a capacitance of 1500 µF and a voltage rating of 16 V.

  • Tolerance: It has a tolerance of ±20% and an impedance of 36 mOhms.
  • Mounting/Package: The through hole mounting type capacitor has a radial, can package/case with a dimension of 0.492" Dia (12.50mm).
  • Polarization: It is polarized and has a ripple current of 1.53 A @ 120 Hz and 1.7 A @ 10 kHz.
  • Series/Application: The UPM series capacitor is suitable for general purpose applications and has a lifetime of 5000 hours @ 105°C.
