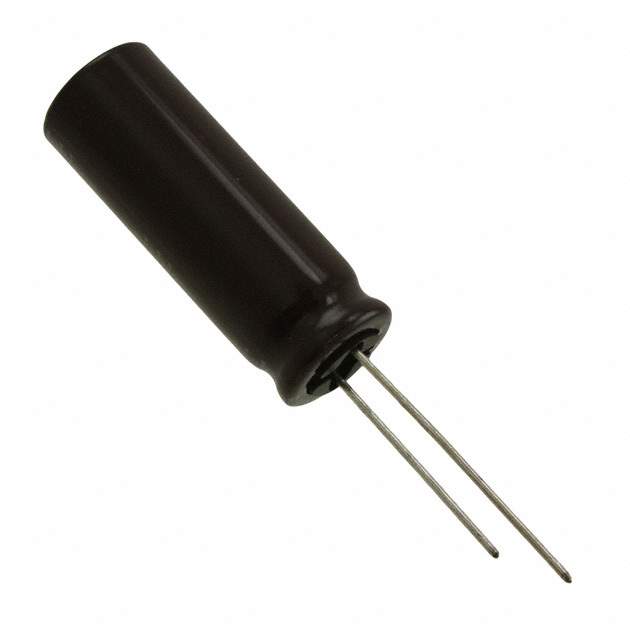

Same model may have multiple batches, images only for reference.

UPJ1H681MHD

Name: UPJ1H681MHD
Brand: Nichicon
SKU: 1336867
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UPJ1H681MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 680UF 20% 50V RADIAL / 680 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UPJ1H681MHD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPJ
Package	Bulk
Product Status	Not For New Designs
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.53 A @ 120 Hz
Ripple Current @ High Frequency	1.85 A @ 10 kHz
Impedance	36 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.457" (37.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	500
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1336867-UPJ1H681MHD
Ultra Librarian 3D Model	Ultra Librarian UPJ1H681MHD CAD Model

Alternative Products

Description

The UPJ1H681MHD is an aluminum electrolytic capacitor that is designed for use in various applications such as general purpose.

Application: General Purpose
Packaging: Bulk
Mounting Type: Through Hole
Capacitance: 680μF
Voltage Rating: 50V
Tolerance: ±20%
Impedance: 36mOhms
Lifetime: 5000hrs @ 105°C
