Same model may have multiple batches, images only for reference.

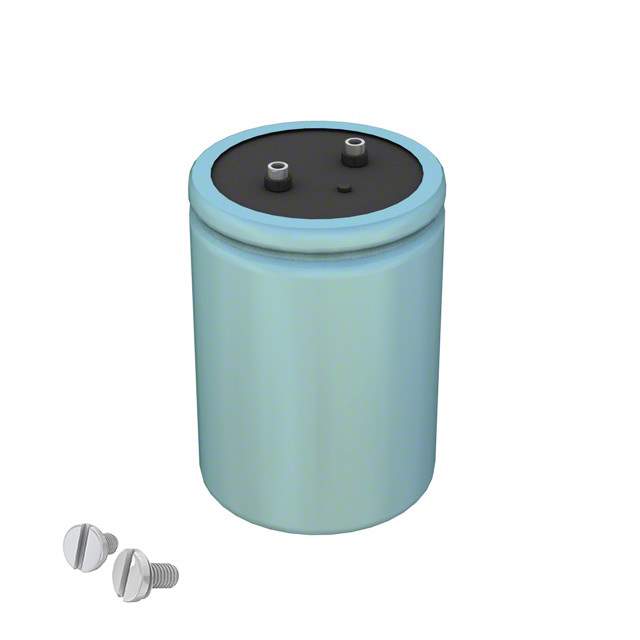

CG113U075X4C Real Image
Same model may have multiple batches, images only for reference.

CG113U075X4C

Part No CG113U075X4C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 11000UF 75V SCREW / Cap Aluminum Lytic 11000uF 75V -10% to 75% (76.2 X 104.775mm) Screw Terminal 0.009 Ohm 18800mA 2000h 85°C
Datasheet
CG113U075X4C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CG
Packaging Bulk
Capacitance 11000μF
Tolerance -10%, +75%
Voltage Rating DC 75V
ESR (Equivalent Series Resistance) 9 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 18.8A @ 120Hz
Ripple Current - High Frequency 21.62A @ 10kHz
Dimension 3.000" Dia (76.20mm)
Height - Seated (Maximum) 4.125" (104.78mm)
Mounting Chassis Mount
Package Radial, Can - Screw Terminals
Win Source Part Number 775549-CG113U075X4C
Popularity Medium
Supply and Demand Status Limited
Family Name CGS
Introduction Date January 04, 2001
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CG113U075X4C CAD Model

Description

This Cornell Dubilier Electronics (CDE) capacitor is an aluminum electrolytic capacitor from the CG series from Cornell Dubilier Electronics (CDE).

  • Capacitance: 11000μF
  • Tolerance: -10%, +75%
  • Voltage Rating: 75V DC
  • Mounting: Chassis Mount
  • Package: Radial, Can - Screw Terminals
  • ESR: 9 mOhm @ 120Hz
  • Operating Temperature: -40°C to 85°C
  • Dimension: 3.000" Dia (76.20mm)
  • Ripple Current: 18.8A @ 120Hz (low frequency), 21.62A @ 10kHz (high frequency)
