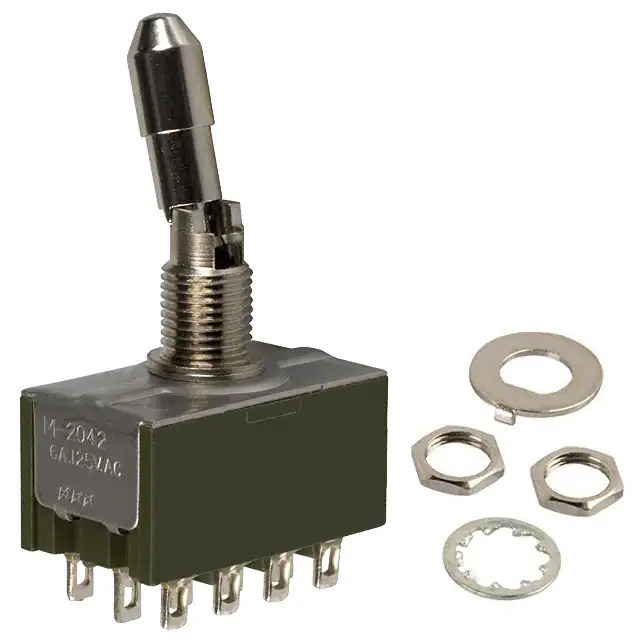

M2042LL1W01

Part No M2042LL1W01
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE 4PDT 6A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series M
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit 4PDT
Switch Function On-On
Current Rating (Amps) 6A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Locking Lever
Actuator Length 16.50mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.50mm Dia
Bushing Thread 1/4-40
Ingress Protection -
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Base Product Number M2042LL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376007-M2042LL1W01
Ultra Librarian 3D Model Ultra Librarian M2042LL1W01 CAD Model

Description

The M2042LL1W01 is a toggle switch from NKK Switches.

  • Terminals: Epoxy Sealed
  • Current Rating: 6A (AC), 4A (DC)
  • Voltage Rating: 125V (AC), 30V (DC)
  • Circuit: 4PDT
  • Switch Function: On-On
  • Actuator Type: Locking Lever
  • Actuator Length: 16.50mm
  • Mounting Type: Panel Mount
  • Package: Bulk
  • Panel Cutout Dimensions: Circular - 6.50mm Dia
  • Electrical Life: 25,000 Cycles
  • RoHS: Compliant
  • REACH: Unaffected
