Products specifications

Category Discrete Semiconductor Products
Family Thyristors - TRIACs
Manufacturer NXP
Packaging Tube
Triac Type Logic - Sensitive Gate
Voltage - Off State 600V
Current - On State (It (RMS)) (Max) 12A
Voltage - Gate Trigger (Vgt) (Max) 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) 95A, 105A
Current - Gate Trigger (Igt) (Max) 10mA
Current - Hold (Ih) (Max) 30mA
Configuration Single
Mounting Style Through Hole
Package TO-220-3 Isolated Tab
Manufacturer Device Package TO-220AB
Win Source Part Number 201454-BT138Y-600E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BT138Y-600E CAD Model

Description

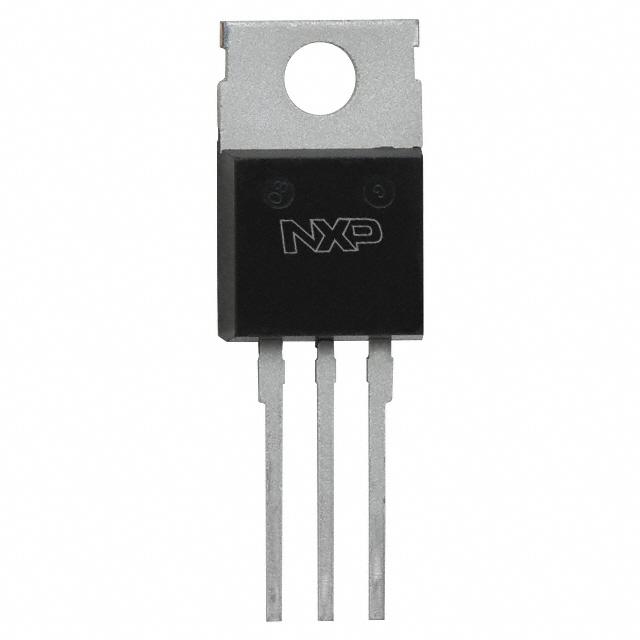

Introducing the NXP BT138Y-600E Triac

The NXP BT138Y-600E is a robust and versatile triac designed for high-performance AC switching applications. This state-of-the-art semiconductor device is engineered to control the power flow across electrical systems, making it an ideal choice for a wide range of applications, including home appliances, motor control circuits, and lighting systems.

Key Features of the BT138Y-600E

  • High Blocking Voltage: With a maximum repetitive peak off-state voltage of 600V, the BT138Y-600E can handle a wide range of AC line voltages, making it suitable for various global applications.
  • High Current Rating: The device offers a high on-state RMS current of 12A, ensuring it can support applications with significant power requirements.
  • Enhanced Thermal Performance: The BT138Y-600E comes in a compact D2PAK surface-mount package, which provides excellent thermal conduction and helps in efficient heat dissipation.
  • Gate Trigger Current: A sensitive gate trigger current (I<sub>GT) allows for direct interfacing with microcontrollers and other logic-level devices, providing ease of control and design flexibility.
  • Snubberless Operation: The triac's design allows for snubberless operation, which simplifies circuit design by eliminating the need for external snubber networks to protect against false triggering.

Applications

The BT138Y-600E is designed to meet the demands of a wide array of AC power control applications. Its robust performance characteristics make it particularly well-suited for:

  • Motor control in power tools, kitchen appliances, and industrial machines
  • AC solid-state switches, which require precise control over the power delivered to the load
  • Lighting control systems, including dimmers and automated lighting solutions
  • Temperature regulation systems such as electric heaters and thermostats

Reliability and Quality

As with all NXP products, the BT138Y-600E is manufactured to the highest quality standards, with rigorous testing to ensure reliable performance in the field. This triac is designed to provide a long operational lifespan, even under demanding conditions, making it a trusted choice for manufacturers and designers seeking a dependable solution for AC power control.

With its combination of high voltage and current capabilities, thermal efficiency, and ease of integration, the NXP BT138Y-600E stands out as a superior choice for engineers looking to optimize their AC switching applications.
