Products specifications

Manufacturer NXP
Win Source Part Number 1156621-BYD77B
Manufacturer Homepage www.nxp.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BYD77B CAD Model

Description

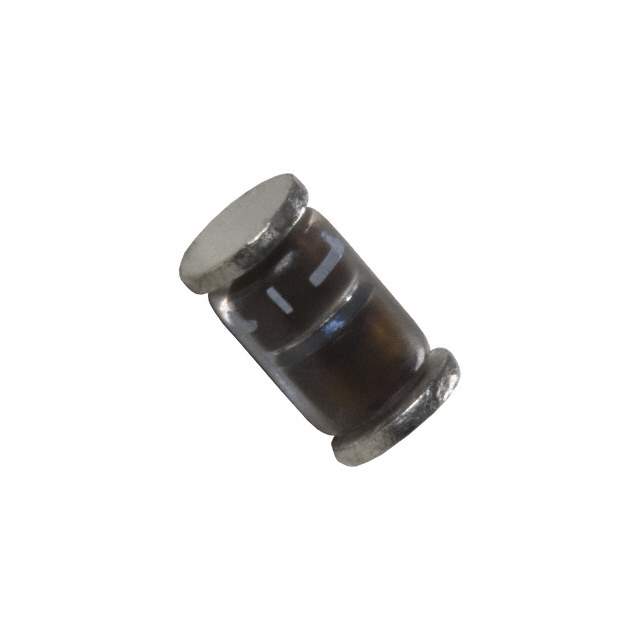

The BYD77B, from the renowned manufacturer NXP Semiconductors, is a high-speed switching diode encapsulated in a small SOD-323 plastic SMD package. Designed to meet the rigorous demands of modern electronic applications, the BYD77B is a versatile component suitable for a range of uses, including high-speed switching, clipping, and clamping operations, as well as for protection circuits in various electronic devices.

Key Features

  • Low Capacitance: The device boasts a very low total capacitance, typically in the picofarad range, which is ideal for high-frequency applications where minimal signal distortion is crucial.
  • Fast Switching Speed: With its fast switching capability, the BYD77B ensures efficient operation in circuits that require quick response times.
  • Reverse Voltage: It can withstand a repetitive peak reverse voltage of up to 100V, providing ample protection against voltage spikes.
  • Forward Current: The diode can handle a continuous forward current of 350 mA, making it suitable for high-density circuit designs.
  • Low Forward Voltage Drop: The low forward voltage drop of the BYD77B minimizes power loss and improves efficiency in the circuit operation.

Applications

The BYD77B is used in a variety of applications across different industries. Its fast switching speed and low capacitance make it ideal for:

  • High-speed logic circuits
  • Voltage clamping
  • Protection circuits
  • Reverse voltage protection
  • Portable and battery-powered devices
  • Telecommunication systems

Quality and Reliability

NXP Semiconductors is known for its commitment to quality and reliability, and the BYD77B is no exception. It is manufactured with the highest standards and undergoes rigorous testing to ensure it meets the strict specifications required for industrial and commercial use. The compact SOD-323 package is designed for automated assembly processes, making the BYD77B easy to integrate into a wide range of products.

With its combination of speed, efficiency, and reliability, the BYD77B is an excellent choice for designers looking to enhance the performance of their high-speed switching applications.
