Products specifications Report Issue?

Categories Integrated Circuits (ICs)

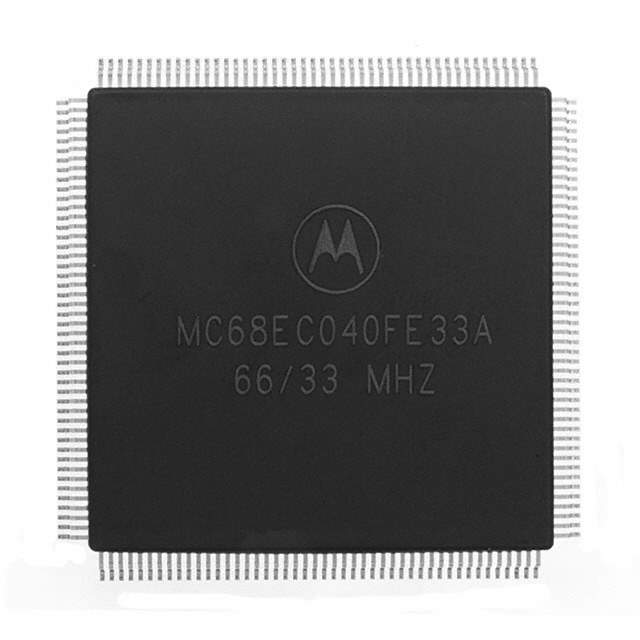

Features 68040 Microprocessor IC series 1 Core, 32-Bit 33MHz 184-CQFP (31.3x31.3)
Manufacturer NXP
Series M680x0
Package Tray
Part Status Obsolete
Core Processor 68040
Speed 33MHz
Operating Temperature Range 0°C ~ 70°C (TA)
Package 184-BCQFP
Case / Package 184-CQFP (31.3x31.3)
Family Name MC680
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Quantity per package 24
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 883503-MC68040FE33A
Ultra Librarian 3D Model Ultra Librarian MC68040FE33A CAD Model

Description

The NXP MC68040FE33A is a high-performance 32-bit microprocessor that stands as a testament to NXP's commitment to providing advanced processing solutions. This microprocessor is part of the illustrious MC680x0 line, renowned for their integration into a wide array of computing systems, from desktop computers to sophisticated embedded systems.

At the heart of the MC68040FE33A lies a 33 MHz clock speed, which propels the processor to deliver robust performance for complex computations and multitasking operations. The integration of a floating-point unit (FPU) enhances the processor’s capability to handle computationally intensive tasks, such as graphics processing and scientific calculations, with greater efficiency.

The NXP MC68040FE33A is designed with a fully integrated cache system that includes separate 4 KB instruction and data caches (I-cache and D-cache). This arrangement significantly improves the processor's throughput by reducing memory latency and increasing the speed at which instructions can be executed.

One of the standout features of the MC68040FE33A is its memory management unit (MMU). The MMU provides sophisticated virtual memory support, enabling the processor to utilize available RAM more effectively, which is crucial for running modern operating systems and complex applications that demand dynamic memory allocation.

The processor's pipelining architecture is another highlight, which allows for overlapping instruction execution, thus optimizing the CPU's performance and throughput. This makes the MC68040FE33A an excellent choice for systems where high processing speed and efficient multitasking are of paramount importance.

The MC68040FE33A is built with versatility in mind, supporting a wide range of interfaces and peripheral connections. This flexibility ensures that it can be easily integrated into various hardware designs, making it a suitable option for both legacy systems and new projects that require a reliable and powerful CPU.

Overall, the NXP MC68040FE33A microprocessor is a powerful and versatile component that is well-suited for a variety of demanding applications. Its combination of speed, integrated features, and NXP's reputation for quality make it a strong candidate for any project requiring a robust 32-bit processing solution.
