Products specifications

Manufacturer NXP USA Inc.
Packaging Tray
Part Status Obsolete (End Of Life)
Core Processor Coldfire V2
Core Size 32-Bit
Speed 166.67MHz
Connectivity EBI/EMI, I2C, SPI, UART/USART
Peripherals DMA, WDT
Number of I/O 30
Program Memory Type ROMless
RAM Size 16K x 8
Voltage - Supply (Vcc/Vdd) 1.4V ~ 3.6V
Oscillator Type External
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD

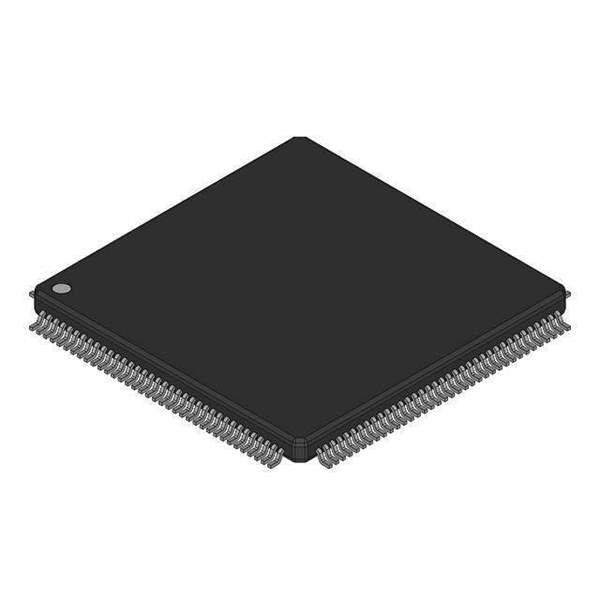

Manufacturer Package 144-LQFP
Supplier Device Package 144-LQFP (20x20)
Part Number Series MCF5207
Manufacturer Pack Quantity 360
MSL Level 3 (168 Hours)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814466-MCF5207CAG166
Ultra Librarian 3D Model Ultra Librarian MCF5207CAG166 CAD Model

Description

The NXP MCF5207CAG166 is a highly integrated microcontroller that is part of the MCF520X family of ColdFire microprocessors. This powerful MCU is designed to cater to the needs of embedded control applications, offering a blend of performance, connectivity, and efficiency. The MCF5207CAG166 is suitable for a wide range of applications, including industrial control, medical devices, automotive systems, and networking equipment.

Key Features:

  • Core: The device is built around the V2 ColdFire core, which operates at a speed of 166 MHz, providing a balance between high performance and low power consumption.
  • Memory: It comes equipped with a variety of memory options, including 16KB of internal SRAM and an external bus interface for additional memory or peripheral expansion.
  • Connectivity: The MCF5207CAG166 supports a range of connectivity options such as UART, QSPI, and I²C modules, enabling easy communication with peripherals and other microcontrollers.
  • Timers: Integrated timers including a Programmable Interrupt Timer (PIT) and Watchdog Timer (WDT) provide timing and scheduling capabilities essential for real-time applications.
  • Debugging and Emulation: The microcontroller features a background debug mode (BDM) for in-circuit debugging, simplifying development and troubleshooting.
  • Power Management: Advanced power management features are available for optimizing power consumption in various operating modes.

Applications:

The versatile nature of the MCF5207CAG166 makes it an ideal choice for a host of embedded applications. Its robust design and feature set are particularly well-suited for:

  • Industrial Control Systems
  • Medical Instrumentation
  • Automotive Control Units
  • Networking and Telecommunications Equipment
  • Complex System Controllers

Conclusion:

The NXP MCF5207CAG166 is a sophisticated microcontroller that combines performance, connectivity, and power efficiency. Its ColdFire V2 core and comprehensive feature set make it a reliable choice for designers looking to develop advanced embedded systems. Whether for industrial, automotive, medical, or networking applications, the MCF5207CAG166 provides the necessary tools to create efficient and powerful embedded solutions.
