Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer NXP
Series MPC83xx
Packaging Tray
Core Processor PowerPC e300c3
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 333MHz
Co-Processors/DSP Security; SEC 2.2
RAM Controllers DDR, DDR2
Graphics Acceleration No
Ethernet 10/100/1000 Mbps (2)
USB USB 2.0 + PHY (1)
Voltage - I/O 1.8V, 2.5V, 3.3V
Operating Temperature Range 0°C ~ 105°C (TA)
Security Features Cryptography

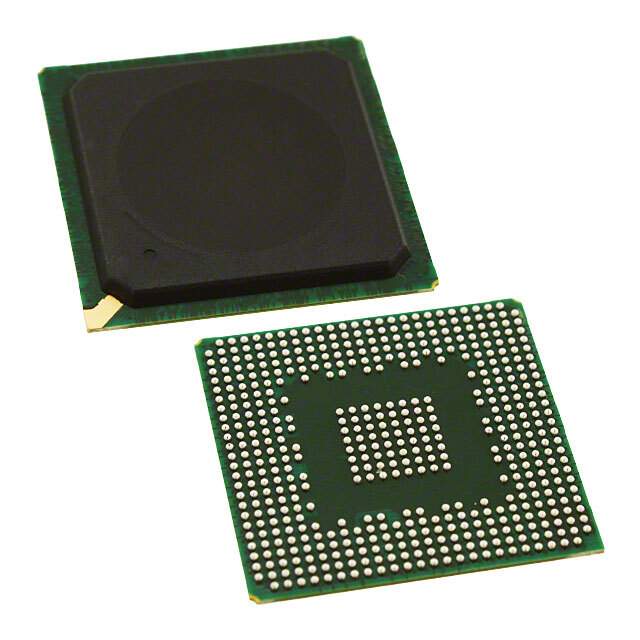

Package 516-BBGA Exposed Pad
Manufacturer Package 516-TEPBGA (27x27)
Additional Interfaces DUART, HSSI, I2C, PCI, SPI
Win Source Part Number 789259-MPC8313EVRAFFC
Popularity Medium
Supply and Demand Status Limited
Family Name MPC8313E
Introduction Date February 11, 2011
ECCN 5A002.a.1
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian MPC8313EVRAFFC CAD Model

Description

The NXP MPC8313EVRAFFC is a high-performance, power-efficient processor that is part of the PowerQUICC II Pro family. It is designed to meet the needs of embedded networking and computing applications, offering a balance of integrated communication peripherals, processing power, and low-power operation. This processor is ideal for a wide range of applications, including residential gateways, access points, Voice over Internet Protocol (VoIP) gateways, industrial control systems, and networked printers.

Key Features

  • Core: The MPC8313E features an e300 core built on Power Architecture technology, providing a robust and reliable computing platform with a core speed of up to 333 MHz.
  • Memory: It supports a variety of memory types, including DDR2 SDRAM, allowing for flexible and high-speed memory access that is essential for handling complex tasks and data.
  • Integrated Peripherals: This processor comes with an array of integrated peripherals, including dual Ethernet controllers, USB 2.0, and a security engine, which enhance its connectivity and data protection capabilities.
  • Power Efficiency: The MPC8313E is designed with power efficiency in mind, featuring a low-power 90nm technology that helps reduce overall system power consumption.
  • Security: With its integrated security engine, the processor provides hardware acceleration for secure data transactions, ensuring data integrity and protection for sensitive information.

Applications

The versatility of the MPC8313EVRAFFC makes it suitable for a broad range of applications. Its integrated features and efficient performance are particularly beneficial for networking equipment, such as routers and switches, where reliable data throughput and secure operations are paramount. Additionally, its low-power consumption makes it an excellent choice for portable and battery-operated devices where power management is critical.

Conclusion

In conclusion, the NXP MPC8313EVRAFFC is a versatile and efficient processor that delivers the performance required for today's demanding embedded applications. Its combination of power efficiency, integrated features, and robust security options make it a compelling choice for designers and engineers looking to develop advanced, reliable, and secure systems.
